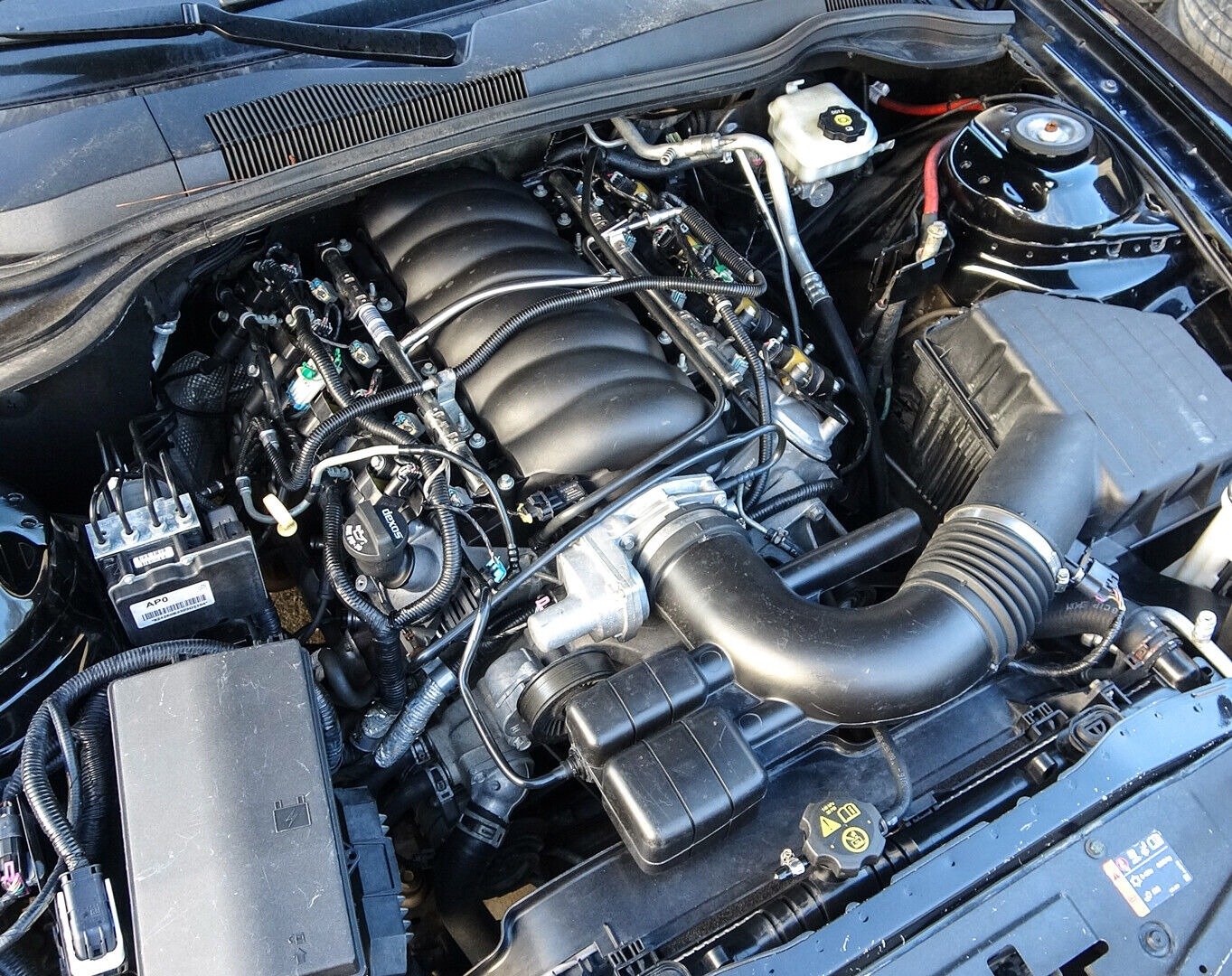

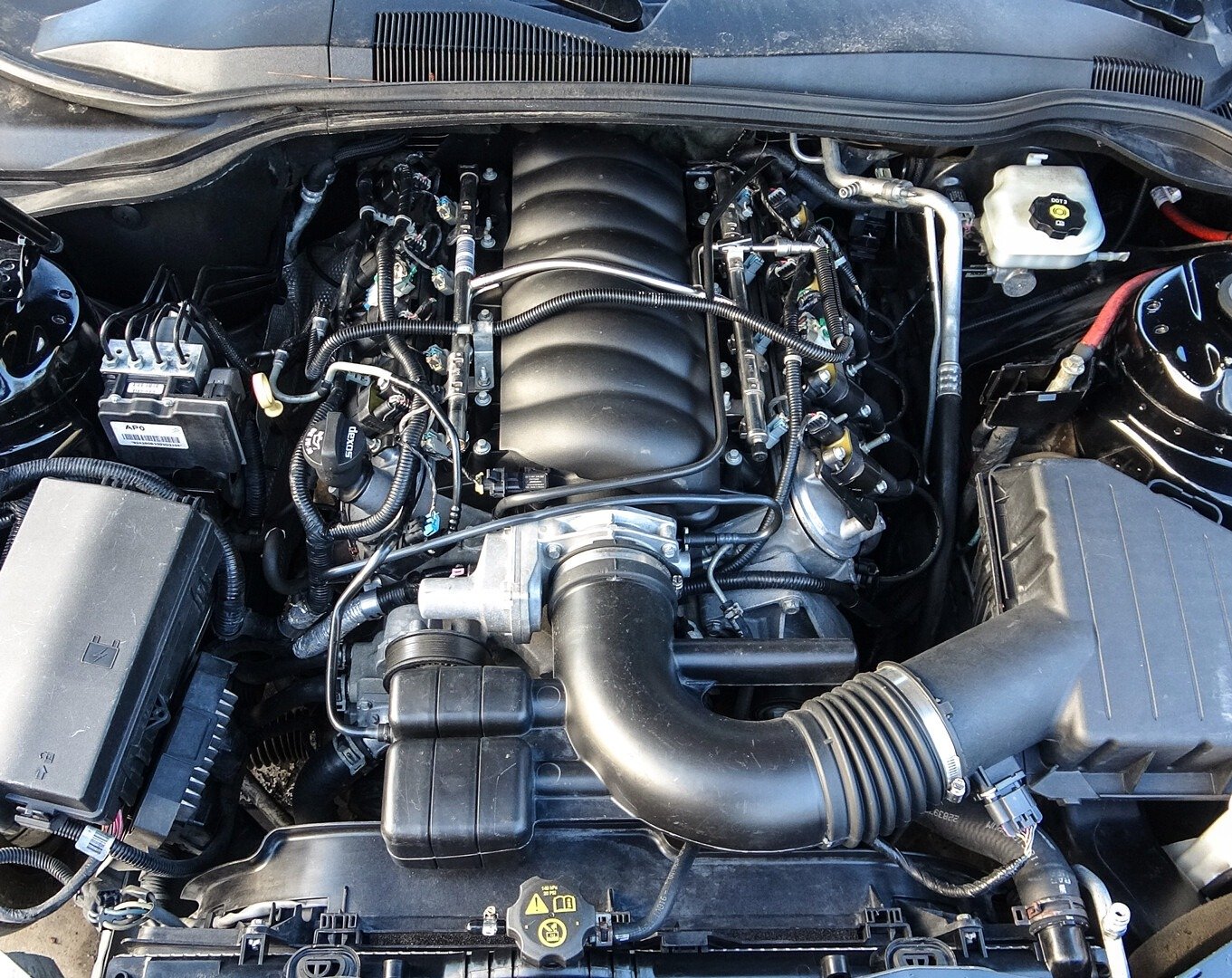

2014 Chevrolet Camaro SS – 6.2L L99 Engine & 6L80E 6-Speed Automatic Transmission Pullout

Technical Specifications of the Gen IV 2014 Camaro 6.2L L99 Engine

When planning an upgrade, custom street-rod swap, or structural vehicle restoration centered around a 2014 Camaro 6.2L L99 Engine for a classic car retrofit or an OEM vehicle replacement, tracking precise mechanical factory specifications is critical for managing fuel delivery lines and physical engine bay clearances.

• Engine Core Construction: Lightweight cast-aluminum cylinder block equipped with high-flowing rectangular-port aluminum cylinder heads (Gen IV LS architecture)

• Advanced Valvetrain Tech: Equipped from the factory with Active Fuel Management (AFM/DOD) and Variable Valve Timing (VVT) for optimized torque curves

• Transmission Integration: 6L80E heavy-duty 6-speed electronic automatic transmission featuring integrated clutch configurations and a wide 6.04:1 overall gear ratio spread

• Throttle Control Layout: Generation IV electronic drive-by-wire system pairing a high-flow digital throttle body to electronic accelerator parameters

• Factory Performance Ratings: 400 Horsepower and 410 lb-ft of Torque

To cross-reference specific block casting marks, internal oiling routing schematics, or cylinder head airflow charts for high-performance General Motors Gen IV sports car engine architectures, you can check out the comprehensive public databases on LSX Magazine and Tech Reference Indexes.

What is Included in This Complete Drivetrain Turn-Key Package?

This 2014 Camaro 6.2L L99 Engine pullout assembly is delivered as an ultra-complete mechanical package, preserving the critical factory electronics, automatic shifting hardware, and belt-driven components that typical salvage yards slice through or damage during hasty extraction.

Electronics, Loom, & Control Architecture

• Complete factory engine wiring harness with all primary injector, coil pack, VVT solenoid, and sensor clips intact.

• Original matching Engine Control Module (ECM/PCM) computer pre-loaded with factory 2014 muscle car fuel and timing parameters.

• Full set of all vital engine sensors pre-installed (including mass airflow feedback, manifold absolute pressure, crank, cam, and temperature sensors).

Mechanical Core Components & Automatic Transmission Line

• Complete factory low-profile composite intake manifold assembly, fuel rails, fuel injectors, and electronic throttle body.

• Aluminum cylinder heads with complete internal overhead valvetrain, factory camshaft, timing assembly, and rugged front timing cover.

• Authentic 6L80E 6-speed automatic transmission complete with its original high-capacity torque converter, internal controller, and structural flexplate setup.

• Factory heavy-duty automatic transmission crossmember to support stable chassis integration during your project mockup phase.

• Full front accessory drive array complete with all factory structural brackets, hardware bolts, alternator, power steering pump, and water pump.

• High-torque starter motor, original factory cast iron exhaust manifolds, and a factory F-body structural oil pan.

Why the 2014 Camaro 6.2L L99 Engine Setup is an Exceptional Conversion Choice

Performance enthusiasts and vintage hot-rod shops actively prioritize finding a genuine 2014 Camaro 6.2L L99 Engine package over standard truck platforms because it delivers a car-configured architecture natively optimized for tight engine bays. This 2014 version represents an advanced evolution of the Gen IV small-block line, sharing its fundamental architecture with the legendary LS3 engine, but optimized specifically for automatic platforms through factory-integrated Variable Valve Timing (VVT). The inclusion of VVT allows the engine computer to continuously adjust camshaft timing, widening the powerband to deliver massive low-end torque.

Additionally, because the 2014 Camaro 6.2L L99 Engine in this package includes a factory-mated 6L80E six-speed automatic transmission, it commands massive market demand for cruising builds. Unlike older 4-speed automatics, the 6L80E features two overdrive gears for exceptionally smooth highway cruising alongside a very aggressive 4.03:1 first gear for lightning-fast off-the-line acceleration. Built with a sleek, low-profile intake manifold that slips easily under standard vintage hoods, this all-aluminum block sheds nearly 100 pounds off your chassis nose compared to older iron cast blocks. It serves as an exceptional baseline for custom modifications, high-performance AFM-delete camshaft upgrades, or traditional street rod retrofits.

Freight Shipping Logistics and Universal Drivetrain Compatibility

This universal 2014 Camaro 6.2L L99 Engine drivetrain package serves as a direct factory replacement for 2010–2015 Chevrolet Camaro SS automatic models, and stands as an exceptional premium engine swap foundation for vintage muscle cars, pro-touring custom builds, or custom street rods.

We anchor this entire heavy-duty V8 package onto an industrial wooden shipping pallet, wrapping the aluminum block, intake assembly, and automatic 6-speed transmission in protective industrial shrink-wrap to isolate components from road vibrations during freight transit. All motor oils, transmission fluids, and cooling system residues are completely extracted prior to shipment to fully comply with nationwide highway freight transport protocols. To explore complementary conversion gear or alternative mounting setups, make sure to browse our General LS Engine Swaps Inventory or check out our catalog of Tested Automatic Transmissions to match alternative torque converter setups or gear layouts.

Frequently Asked Questions (FAQs)

• What is the difference between this L99 version and a standard LS3 engine? The L99 is functionally identical to the 6.2L LS3 in block construction and cylinder head design, but features a slightly lower compression ratio (10.4:1 vs 10.7:1) to accommodate factory VVT and AFM valvetrain components used on automatic vehicles.

• What is required to make this setup standalone for a classic car swap? For vintage vehicle integration, you will need a standalone wiring harness adapter and a professional software reflash to disable the factory VATS (Vehicle Anti-Theft System) security protocol inside the computer network.

• Where can I buy a reliable 2014 Camaro 6.2L L99 Engine package online? Our fully certified, visually inspected engine pullouts provide professional car and truck builders with an honest, completely documented, and dependable performance foundation.

Disclaimer: This pre-owned automotive powertrain package is sold intended for professional vehicle restoration, OEM replacement, or private custom engine swap applications. Professional installation, fresh fluid lines, and complete electronic calibrations are highly recommended to maximize field safety and component durability.
