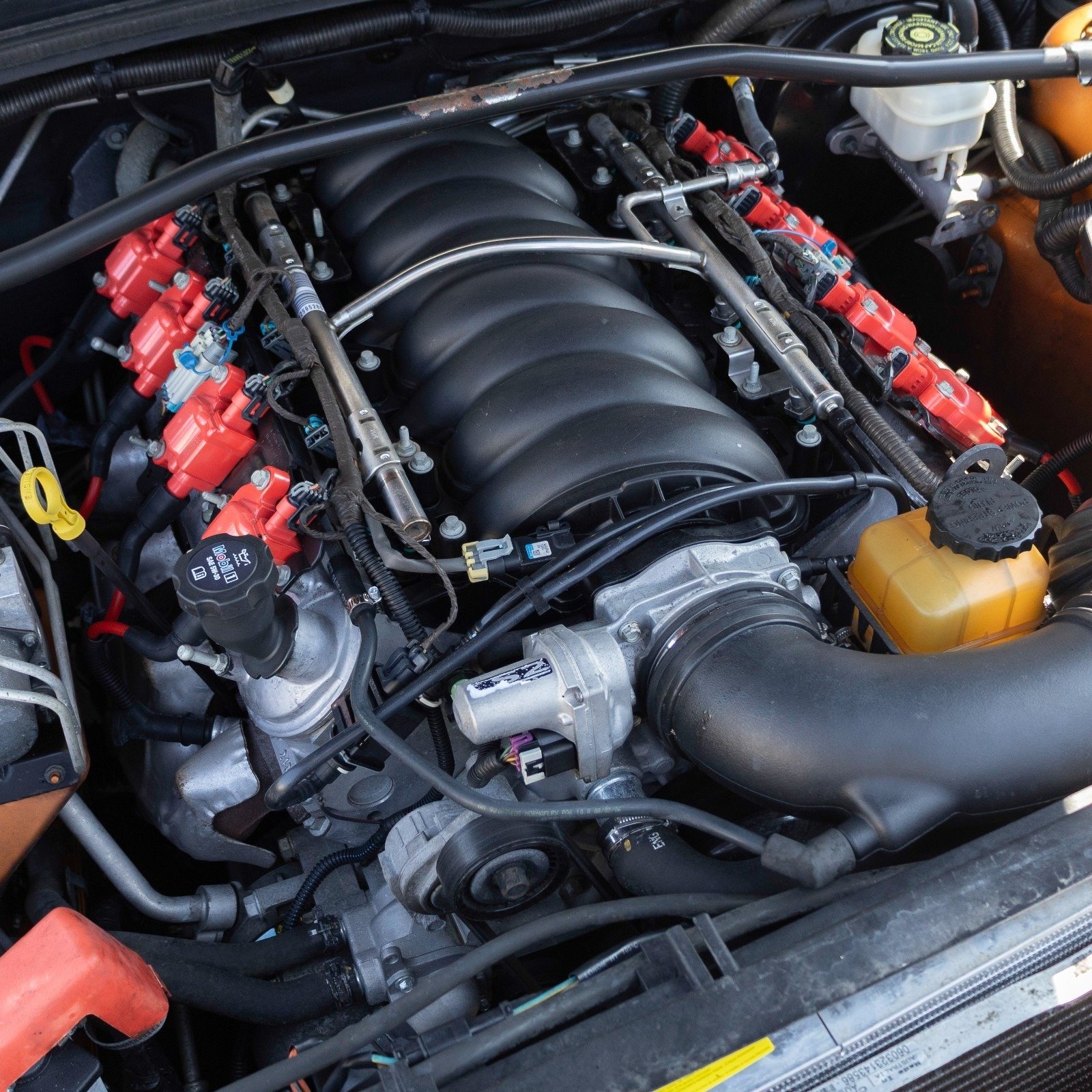

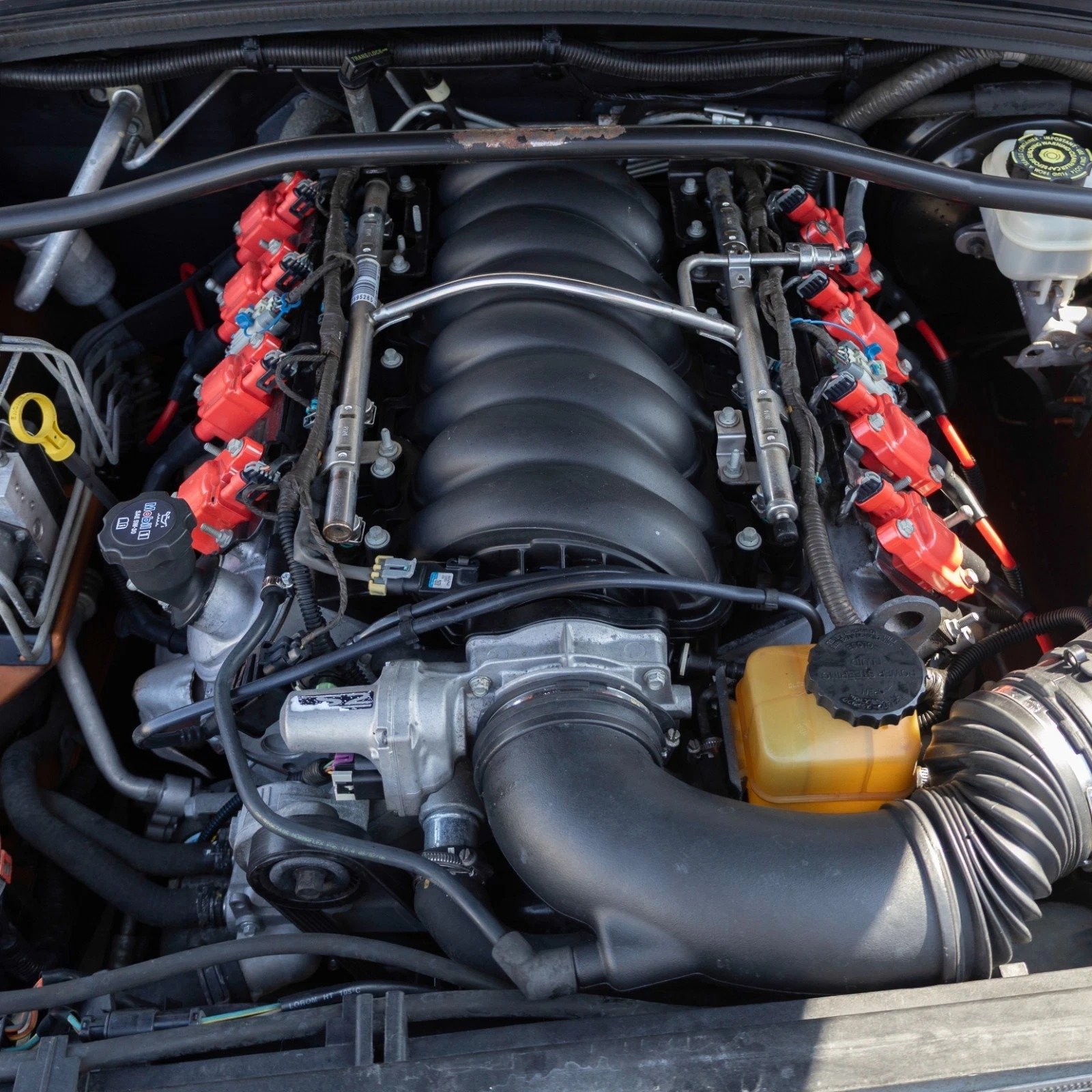

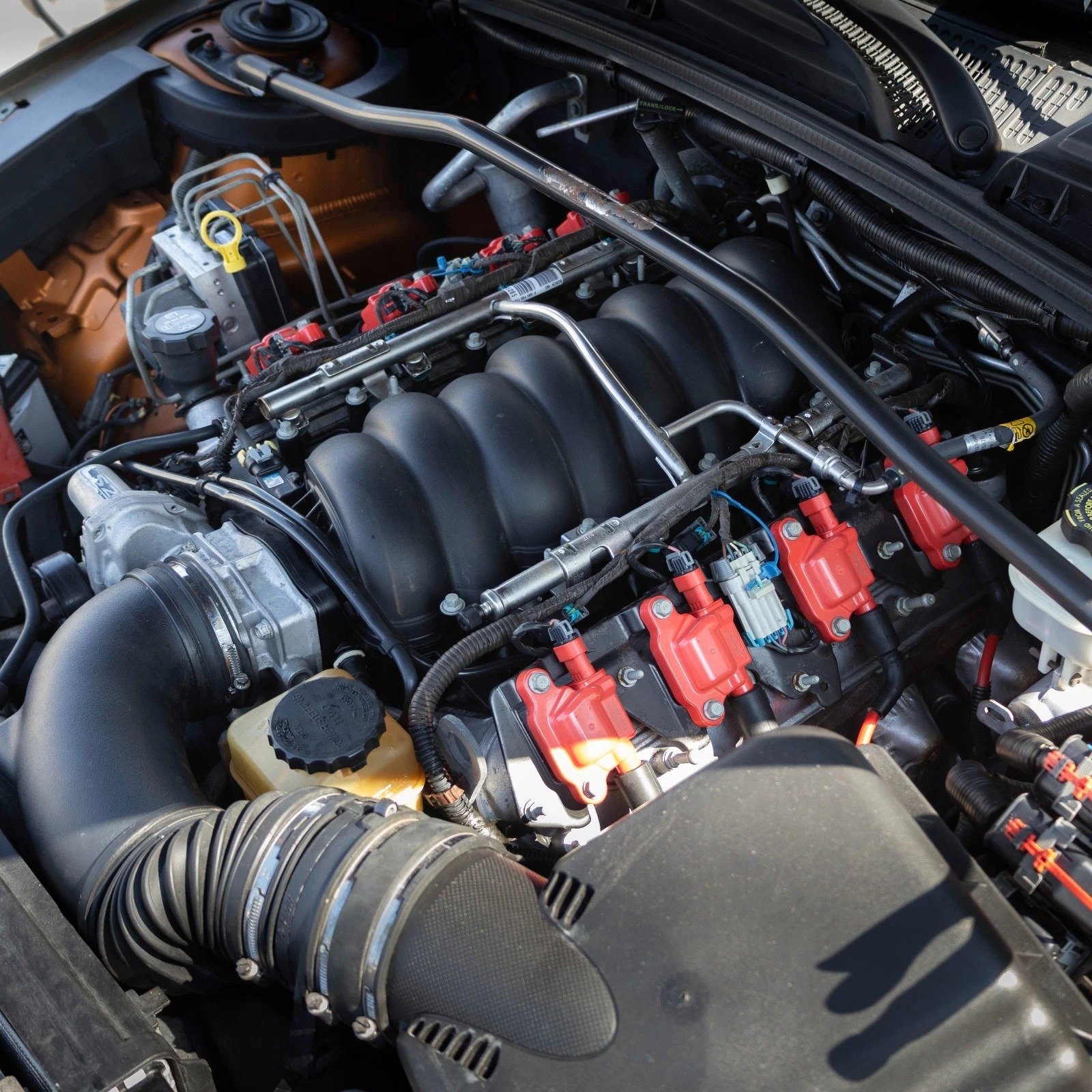

2006 Pontiac GTO – 6.0L LS2 Engine & 4L65E 4-Speed Automatic Transmission Pullout

Technical Specifications of the Gen IV 2006 GTO 6.0L LS2 Engine

When planning an upgrade, custom street-rod swap, or structural vehicle restoration centered around a 2006 GTO 6.0L LS2 Engine for a classic car retrofit or an OEM vehicle replacement, tracking precise mechanical factory specifications is critical for managing fuel delivery lines and physical engine bay clearances.

• Engine Core Construction: Lightweight cast-aluminum cylinder block equipped with high-flowing 243-casting aluminum cylinder heads (Gen IV architecture)

• Internal Cast Layout: High-strength structural 4.00-inch bore and 3.62-inch stroke design featuring a stable 10.9:1 factory compression ratio

• Transmission Integration: 4L65E heavy-duty 4-speed electronic automatic transmission configured with hardened gearsets to handle high input torque

• Throttle Control Layout: Generation IV electronic drive-by-wire system pairing a 90mm throttle body to a dedicated factory accelerator pedal assembly

• Factory Performance Ratings: 400 Horsepower and 400 lb-ft of Torque

To cross-reference specific block casting marks, internal oiling routing schematics, or cylinder head airflow charts for high-performance General Motors Gen IV sports car engine architectures, you can check out the comprehensive public databases on LSX Magazine and Tech Reference Indexes.

What is Included in This Complete Drivetrain Turn-Key Package?

This 2006 GTO 6.0L LS2 Engine pullout assembly is delivered as an ultra-complete mechanical package, preserving the critical factory electronics, automatic shifting hardware, and belt-driven components that typical salvage yards slice through or damage during hasty extraction.

Electronics, Loom, & Control Architecture

• Complete factory engine wiring harness with all primary injector, coil pack, and sensor clips intact.

• Original matching Engine Control Module (ECM/PCM) computer pre-loaded with factory 2006 muscle car fuel and timing parameters.

• Dedicated Transmission Control Module (TCM) to manage electronic shift points, fluid line pressures, and torque converter lockup.

• Matching electronic drive-by-wire gas pedal assembly to ensure seamless, plug-and-play throttle body calibration.

Mechanical Core Components & Automatic Transmission Line

• Complete factory low-profile composite intake manifold assembly, fuel rails, fuel injectors, and electronic 90mm throttle body.

• Aluminum cylinder heads with complete internal overhead valvetrain, factory camshaft, timing assembly, and rugged front timing cover.

• Authentic 4L65E 4-speed automatic transmission complete with its original torque converter, shift linkages, and structural flexplate setup.

• Full front accessory drive array complete with all factory structural brackets, hardware bolts, alternator, power steering pump, and water pump.

• High-torque starter motor, original factory exhaust manifolds, and a factory front-sump structural oil pan.

Why the 2006 GTO 6.0L LS2 Engine Setup is a Highly Prized Conversion Choice

Performance enthusiasts and vintage hot-rod shops actively prioritize finding a genuine 2006 GTO 6.0L LS2 Engine package over standard truck platforms because it delivers an immediate high-performance architecture natively optimized for cars. This 2006 version represents an advanced evolution of the Gen IV small-block line, featuring the highly desirable 243-casting aluminum cylinder heads—the same high-flowing heads utilized on the legendary Corvette Z06 C5 packages.

Additionally, because the 2006 GTO 6.0L LS2 Engine in this package includes a factory-mated 4L65E electronic automatic transmission, it commands massive market demand. The 4L65E transmission is an upgraded version of the standard 4L60E, factory-equipped with a five-pinion planetary gear set, a hardened input shaft, and a specialized torque converter clutch lining to easily manage 400 horsepower. Built with a car-style manifold and a unique front-sump oil pan, this all-aluminum block sheds nearly 100 pounds off the front nose of your vehicle compared to older cast-iron motor architectures. It serves as an exceptional baseline for custom modifications, high-performance camshaft upgrades, or traditional street rod retrofits.

Freight Shipping Logistics and Universal Drivetrain Compatibility

This universal 2006 GTO 6.0L LS2 Engine drivetrain package serves as a direct factory replacement for 2005–2006 Pontiac GTO automatic models, and stands as an exceptional premium engine swap foundation for vintage muscle cars, pro-touring custom builds, or custom street rods.

We anchor this entire heavy-duty V8 package onto an industrial wooden shipping pallet, wrapping the aluminum block, intake assembly, and automatic transmission in protective industrial shrink-wrap to isolate components from road vibrations during freight transit. All motor oils, transmission fluids, and cooling system residues are completely extracted prior to shipment to fully comply with nationwide highway freight transport protocols. To explore complementary conversion gear or alternative mounting setups, make sure to browse our General LS Engine Swaps Inventory or check out our catalog of Tested Automatic Transmissions to match alternative torque converter setups or gear layouts.

Frequently Asked Questions (FAQs)

• Does this engine utilize a 24X or 58X reluctor wheel? The 2006 model year LS2 engine from the GTO utilizes an advanced 58X crank reluctor wheel (gray sensor) and a 4X camshaft timing sprocket managed via the E40 controller, delivering highly precise ignition tracking.

• What is required to make this setup standalone for a classic car swap? For vintage vehicle integration, you will need a standalone wiring harness adapter and a professional software reflash to disable the factory VATS (Vehicle Anti-Theft System) security protocol inside the computer network.

• Where can I buy a reliable 2006 GTO 6.0L LS2 Engine package online? Our fully certified, visually inspected engine pullouts provide professional car and truck builders with an honest, completely documented, and dependable performance foundation.

Disclaimer: This pre-owned automotive powertrain package is sold intended for professional vehicle restoration, OEM replacement, or private custom engine swap applications. Professional installation, fresh fluid lines, and complete electronic calibrations are highly recommended to maximize field safety and component durability.
