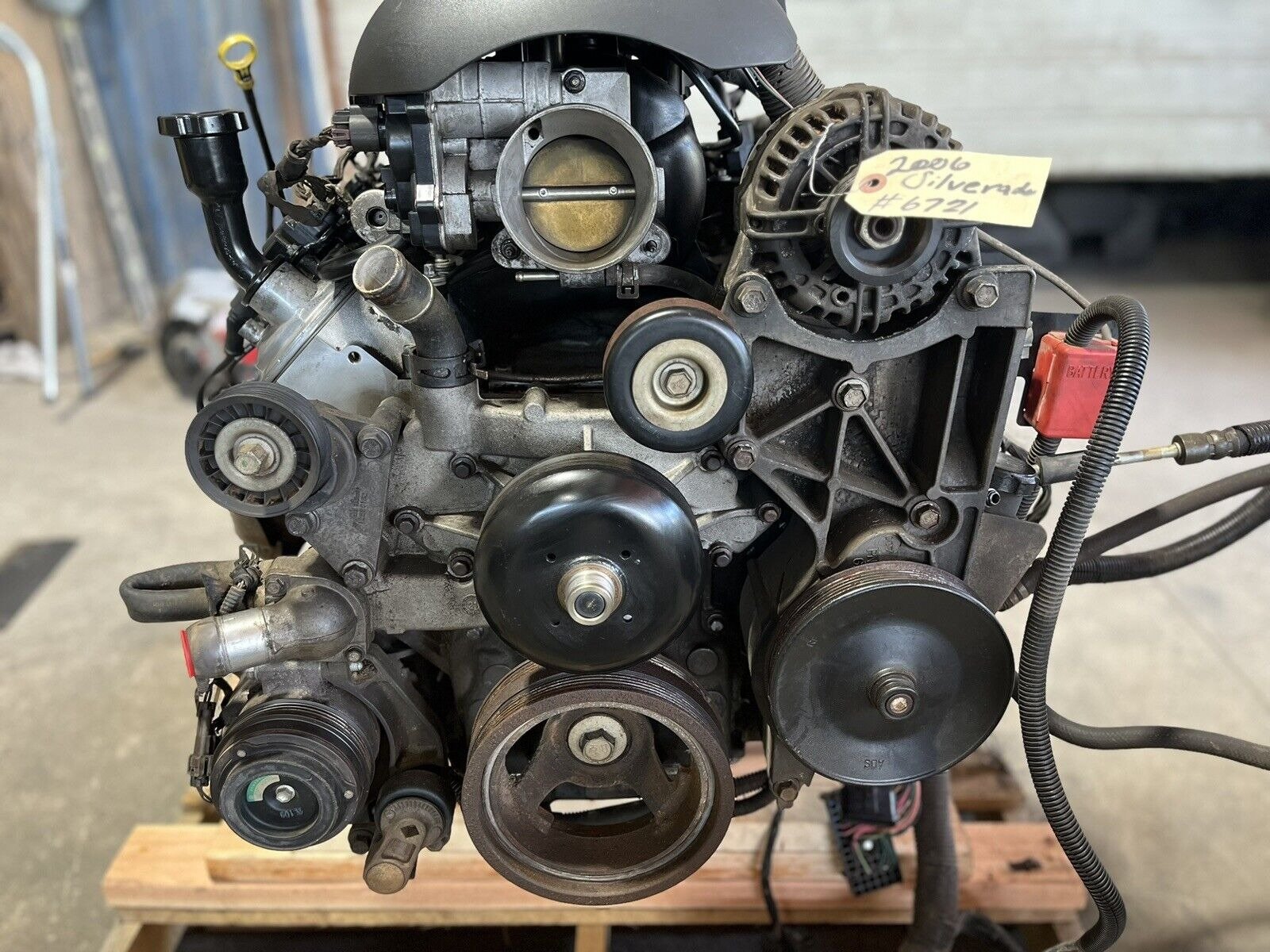

2006 Chevrolet Silverado 2500 6.0L LQ4 Engine

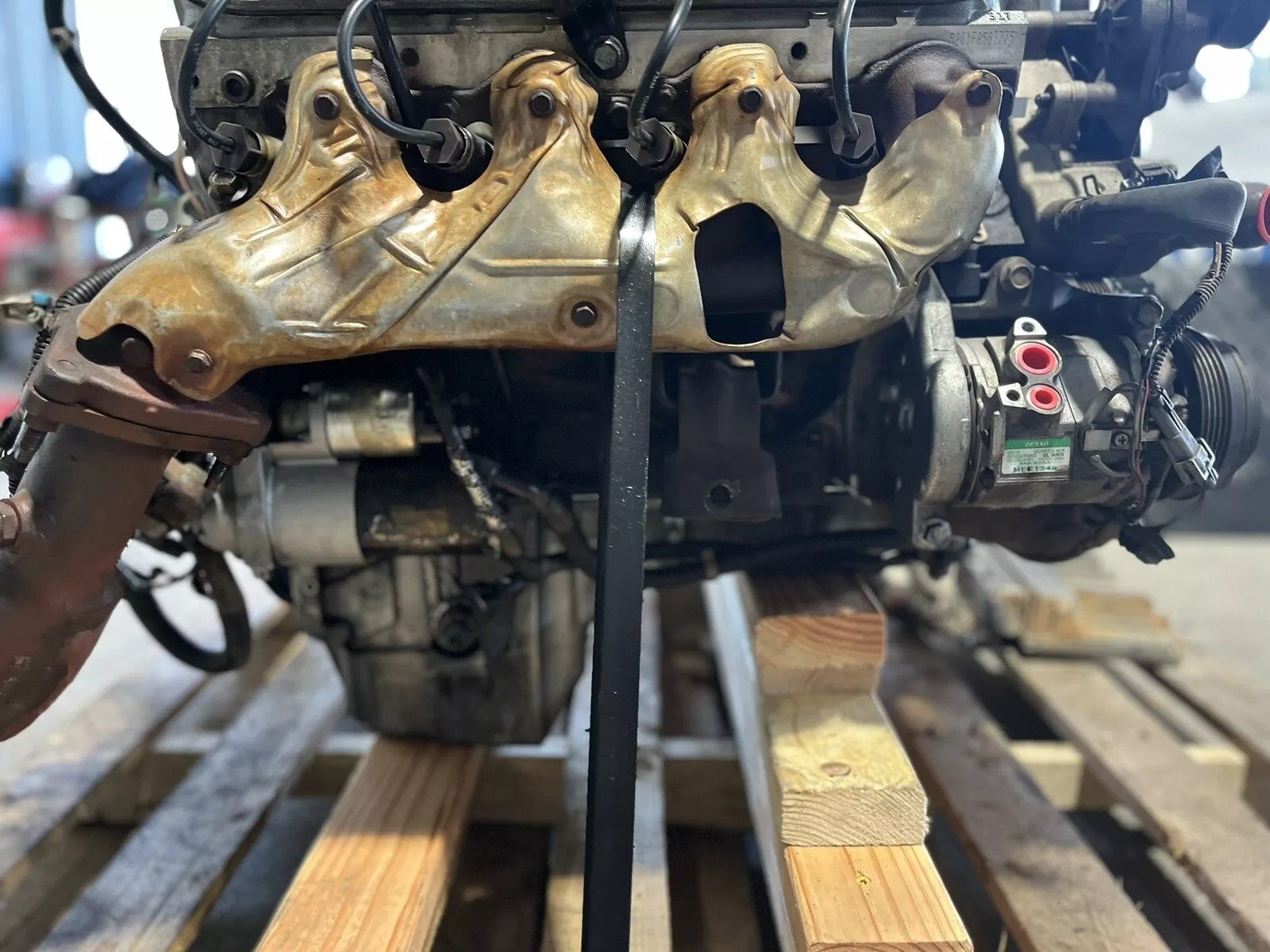

2006 Chevrolet Silverado 2500 – 6.0L LQ4 Engine Complete Pullout - Image 2

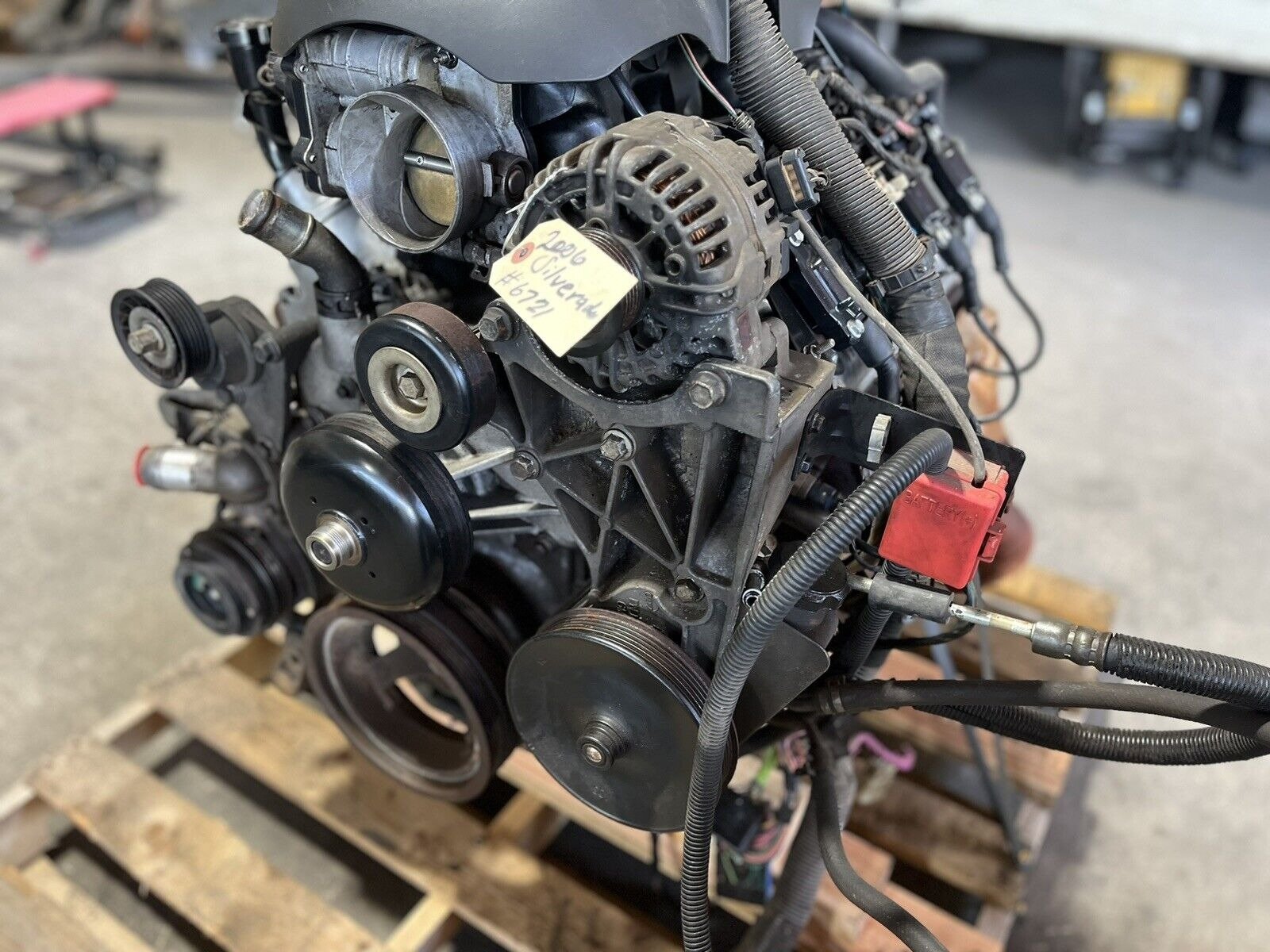

2006 Chevrolet Silverado 2500 – 6.0L LQ4 Engine Complete Pullout - Image 3

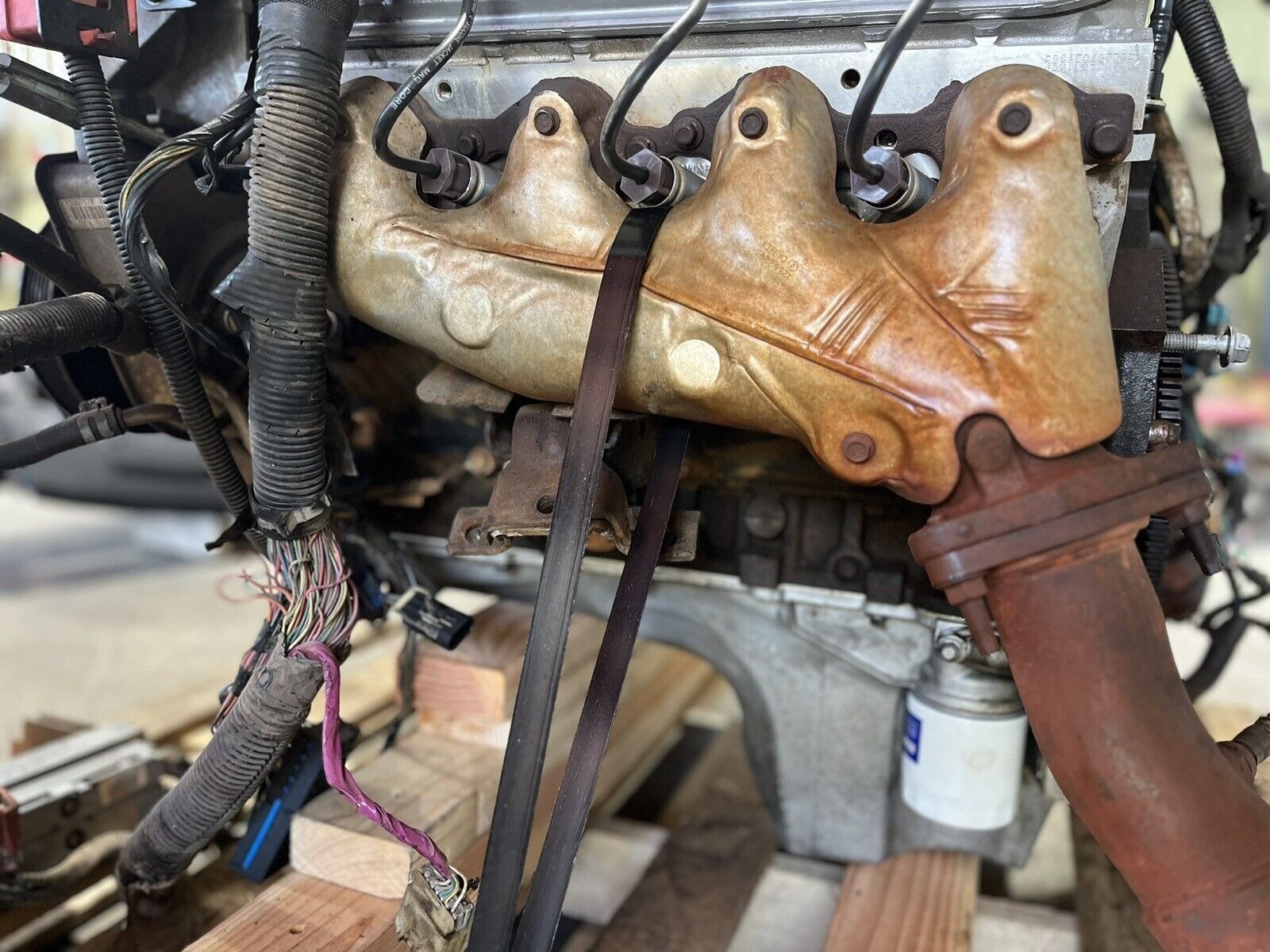

2006 Chevrolet Silverado 2500 – 6.0L LQ4 Engine Complete Pullout - Image 4

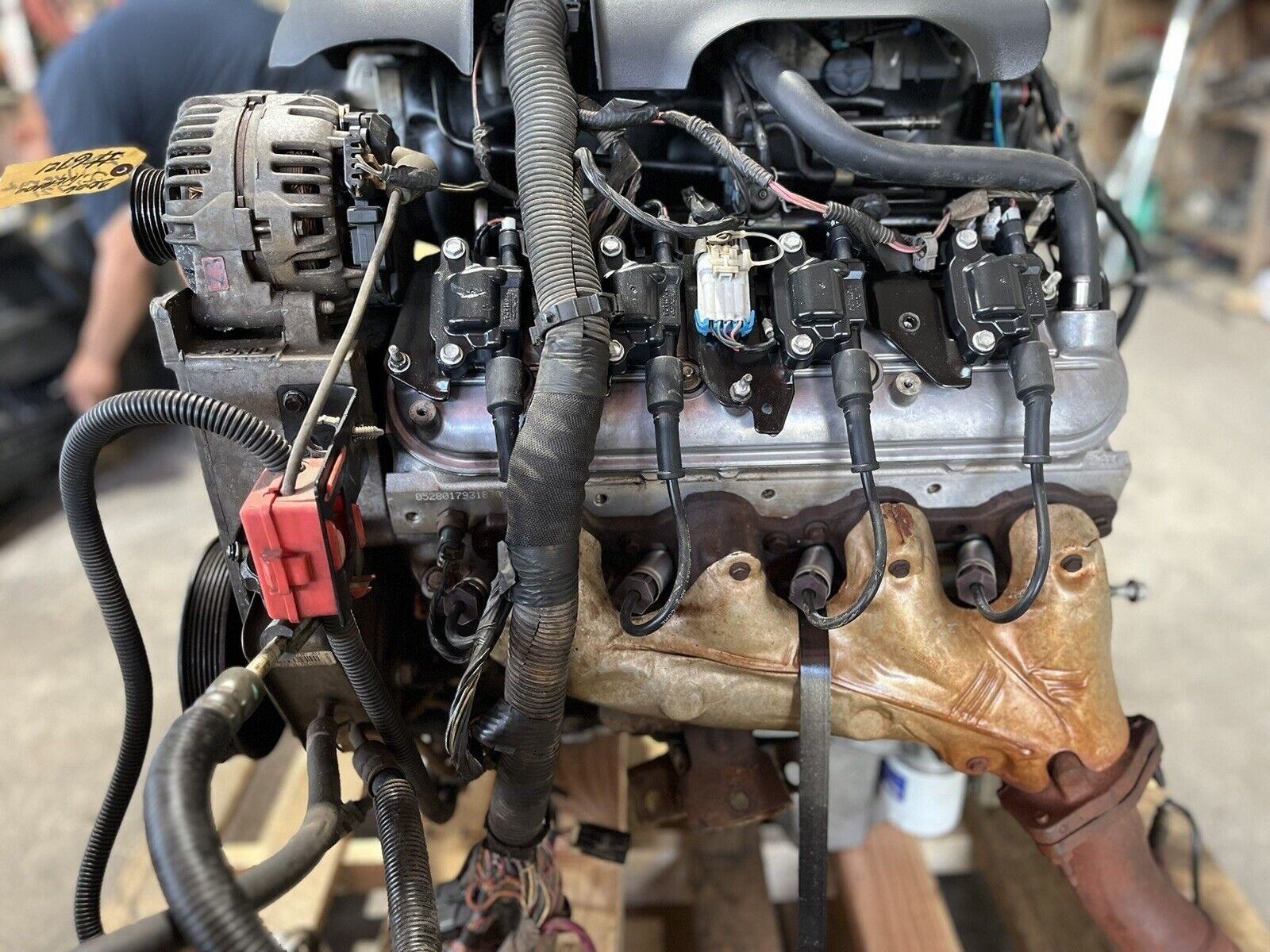

2006 Chevrolet Silverado 2500 – 6.0L LQ4 Engine Complete Pullout - Image 5

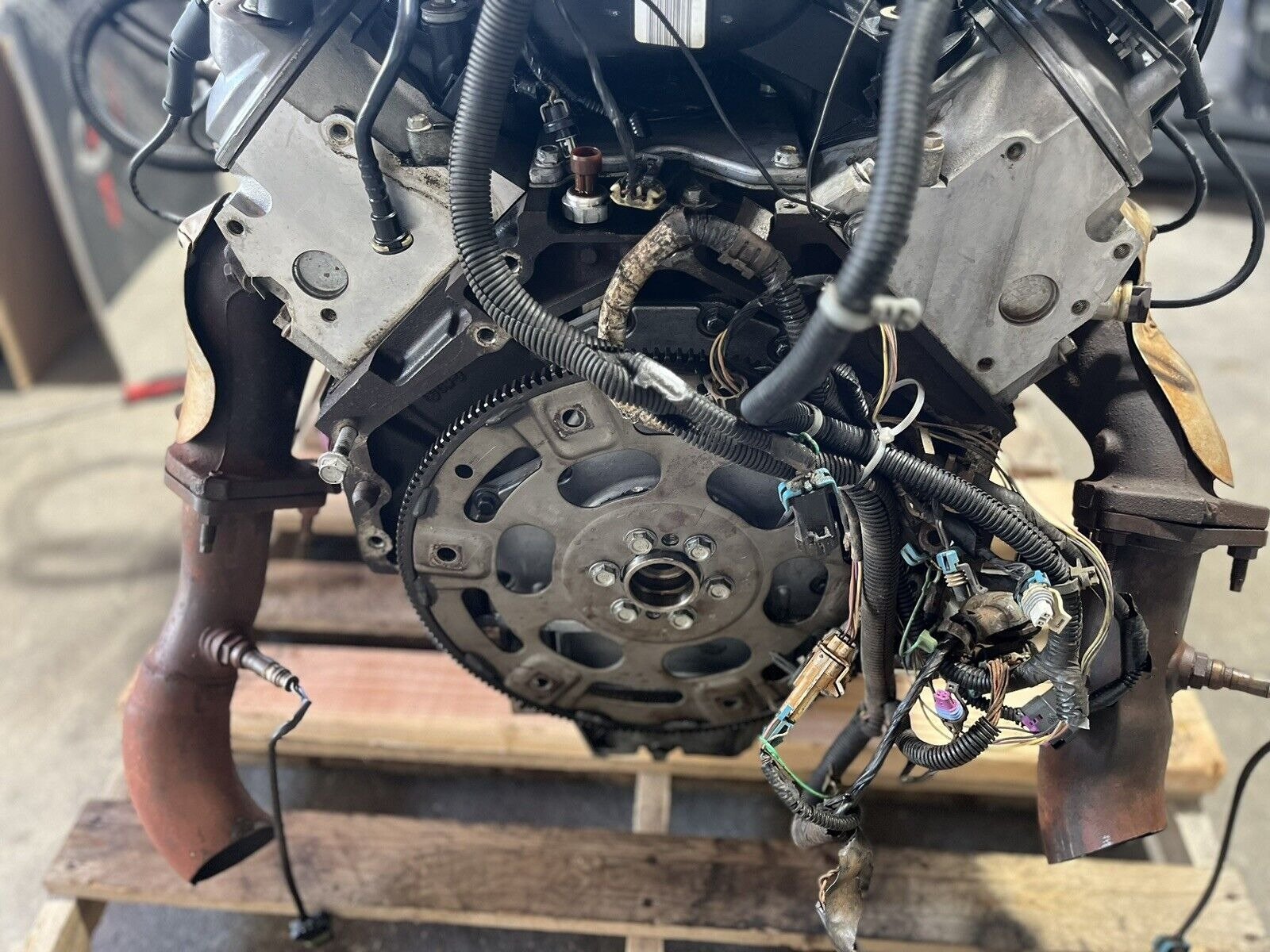

2006 Chevrolet Silverado 2500 – 6.0L LQ4 Engine Complete Pullout - Image 6

2006 Chevrolet Silverado 2500 – 6.0L LQ4 Engine Complete Pullout

$2,400.00

2006 Chevrolet Silverado 2500 6.0L LQ4 Heavy-Duty V8 Engine Standalone Pullout Package A highly reliable, thoroughly tested 2006 Chevrolet Silverado 2500 6.0L LQ4 Engine standalone conversion pullout kit. Extracted from a heavy-duty work truck with 205,096 verified original miles (confirmed by recent state inspection records), this complete Gen III small-block powertrain delivers an impressive 300 horsepower and 360 lb-ft of low-end torque. Because the donor vehicle suffered electrical damage elsewhere on the chassis, this iron-block motor was isolated, compression-tested, and fully run-verified utilizing our in-house standalone testing harness. Arrives completely populated from the composite intake manifold down to the structural oil pan, featuring the engine wiring harness, matching factory ECU, mass airflow (MAF) sensor, throttle actuator control (TAC) module, and electronic gas pedal.

Category:

2006 Chevrolet Silverado 2500 6.0L LQ4 Engine – Complete Iron-Block V8 Standalone Pullout

For custom car creators, restomod professionals, and heavy-duty truck fleet mechanics, choosing a complete 2006 Chevrolet Silverado 2500 6.0L LQ4 Engine package provides an exceptional combination of rugged cast-iron block durability, immense factory towing torque, and excellent long-term service reliability. Sourced directly from a heavy-duty 2006 Chevrolet Silverado 2500 chassis showing 205,096 verified miles per its last official state vehicle inspection, this comprehensive powertrain features the highly sought-after final-year Gen III small-block architecture. Selecting a highly complete, standalone 2006 Chevrolet Silverado 2500 6.0L LQ4 Engine pullout assembly streamlines your vehicle conversion project, delivering the entire mechanical block and electronic management core together to eliminate the immense hidden costs of tracking down individual throttle components, computer modules, and front accessory brackets separately.https://perlicanparts.org/auto-parts-store-about/

Pulled from a 2006 Chevrolet Silverado 2500 with 205,096 last known miles per state inspection, this complete 6.0L LQ4 engine is ideal for custom builds, LS swaps, or replacements. The vehicle had damaged electric components, so the engine was tested and ran using our standalone harness.

Listing Includes:

  • 6.0L Iron Block LQ4 Engine

  • All Belt-Driven Accessories (Alternator, A/C Compressor, Power Steering Pump)

  • Engine Wiring Harness

  • Computer / ECU

  • Tach Module

  • Gas Pedal

  • MAF Sensor

This LQ4 engine pullout provides a reliable, ready-to-install GM V8 drivetrain, perfect for anyone looking to restore or upgrade their Silverado 2500 or build a high-performance project vehicle.

Technical Specifications of the Heavy-Duty LQ4 Vortec Workhorse

When planning an upgrade, custom chassis swap, or vehicle restoration centered around a 2006 Chevrolet Silverado 2500 6.0L LQ4 Engine for a classic truck retrofit or an OEM vehicle replacement, tracking precise mechanical factory specifications is critical for managing fuel delivery lines and physical engine bay clearances.

  • Engine Core Construction: Rugged cast-iron cylinder block equipped with high-flowing aluminum cylinder heads (Gen III LS architecture)

  • Internal Piston Configuration: Factory dished pistons optimized for a stable 9.4:1 compression ratio, ideal for pump-gas reliability and forced induction

  • Throttle Control Layout: Precise electronic Drive-by-Wire (DBW) multi-pin throttle body assembly

  • Fueling & Induction: High-volume composite truck intake plenum utilizing premium high-impedance fuel injectors

  • Factory Performance Ratings: 300 Horsepower and 360 lb-ft of Torque

To cross-reference specific block casting marks, internal oiling gallery routing schematics, or cylinder head airflow charts for high-output General Motors Gen III truck engine architectures, you can check out the comprehensive public databases on LSX Magazine and Tech Reference Indexes.

What is Included in This Complete Drivetrain Turn-Key Package?

This 2006 Chevrolet Silverado 2500 6.0L LQ4 Engine pullout assembly is delivered as an ultra-complete mechanical package, preserving the critical factory electronics and belt-driven components that typical salvage yards slice through or damage during hasty extraction.

Electronics, Loom, & Control Architecture

  • Complete factory engine wiring harness with all primary injector, coil pack, and sensor clips intact.

  • Original matching Engine Control Unit (ECU/PCM) pre-loaded with factory heavy-duty 6.0L fuel mapping.

  • Crucial air tracking hardware, featuring the factory mass airflow (MAF) sensor housing link.

  • Complete interior integration hardware, featuring the matching electronic gas pedal and its dedicated TAC module link.

Mechanical Core Components & Support Assemblies

  • Complete factory composite intake manifold assembly, fuel rails, fuel injectors, and electronic throttle body.

  • Aluminum cylinder heads with complete internal overhead valvetrain, factory camshaft, heavy-duty timing chain, and rugged timing cover.

  • Dual individual coil pack sub-assemblies mounted securely to the original valve covers.

  • All front belt-driven accessories: high-output alternator, power steering pump, water pump, and air conditioning compressor.

  • Full internal assembly from the top plenum down to the factory deep-sump steel structural truck oil pan and high-volume oil pump assembly.

Why the Final-Year Gen III 6.0L Iron Block is the Ultimate LS Swap Choice

Performance truck builders and extreme off-road shops actively prioritize finding a genuine 2006 Chevrolet Silverado 2500 6.0L LQ4 Engine over smaller 4.8L or 5.3L variants because of its massive displacement advantage, thick cylinder walls, and lack of active fuel management. Because this is a final-production-year Gen III block, General Motors integrated stronger floating-pin connecting rods natively into this motor’s rotating assembly—an upgrade over early 1999–2003 variations that significantly enhances its structural ceiling.

Because the 2006 Chevrolet Silverado 2500 6.0L LQ4 Engine utilizes a resilient iron block combined with 9.4:1 compression dished pistons, it stands as the absolute premier choice for turbocharging or supercharging. For builders looking to construct a high-horsepower street machine or a rugged off-road beast, adding a mild performance camshaft upgrade or bolt-on forced induction allows this 6.0L engine to easily cross the 600+ horsepower mark without requiring expensive internal rotating assembly overhauls.

Freight Shipping Logistics and Universal Drivetrain Compatibility

This universal 2006 Chevrolet Silverado 2500 6.0L LQ4 Engine package serves as a direct factory replacement for 2001–2006 Chevrolet Silverado and GMC Sierra 1500HD/2500HD/3500 trucks, and stands as an exceptional premium engine swap foundation for vintage C10 pickups, squarebody truck transformations, or classic muscle car retrofits.

We anchor this entire heavy-duty V8 package onto an industrial wooden shipping pallet, wrapping the iron block, intake assembly, and electronics in protective industrial shrink-wrap to isolate components from road vibrations during freight transit. All motor oils, transmission fluids, and cooling system residues are completely extracted prior to shipment to fully comply with nationwide highway freight transport protocols. To explore complementary conversion gear or alternative mounting setups, make sure to browse our General LS Engine Swaps Inventory or check out our catalog of Tested Automatic Transmissions to match this setup to your specific transmission gear layout.

Frequently Asked Questions (FAQs)

  • How was the engine verified if the truck had damaged electrics? We isolated the engine on our testing stand, hooked up a standalone electrical harness, connected direct fuel pressure, and fired up the motor. It holds excellent oil pressure and runs incredibly smoothly with zero abnormal internal mechanical noises.

  • Can I use standard 87 pump gas with this truck engine? Yes. Unlike the higher-compression LQ9 variant, the LQ4 version found in this 2500 HD truck features dished pistons engineered to run safely and efficiently on standard 87 octane pump gas, even under heavy towing loads.

  • What is required to make this setup standalone for a classic truck swap? For vintage vehicle integration, you will need a standalone wiring harness adapter and a professional software reflash to disable the factory VATS (Vehicle Anti-Theft System) security protocol inside the ECU.

  • Where can I buy a reliable 2006 Chevrolet Silverado 2500 6.0L LQ4 Engine package online? Our fully certified, compression-tested engine pullouts provide professional car and truck builders with an honest, completely documented, and dependable performance foundation.

Disclaimer: This pre-owned automotive powertrain package is sold intended for professional vehicle restoration, OEM replacement, or private custom engine swap applications. Professional installation, fresh fluid lines, and complete electronic calibrations are highly recommended to maximize field safety and component durability.
