2006 Cadillac Escalade 6.0L LQ9 Engine – Complete Iron-Block V8 & 4L65 2WD Drivetrain Package
For custom car creators, restomod professionals, and truck chassis builders, selecting a complete 2006 Cadillac Escalade 6.0L LQ9 engine package provides an exceptional combination of rugged iron-block durability, high factory compression, and legendary performance versatility. Sourced directly from an operational 2006 Cadillac Escalade with 128,762 verified original miles, this comprehensive powertrain features the high-output Gen III small-block engine paired alongside its original heavy-duty 2WD 4L65 four-speed electronic automatic transmission. Choosing a complete standalone 2006 Cadillac Escalade 6.0L LQ9 engine pullout assembly streamlines your vehicle conversion project, delivering the entire mechanical block and electronic management core together to eliminate the immense hidden costs of tracking down compatible throttle components, computer modules, and accessory brackets separately.https://perlicanparts.org/auto-parts-store-about/

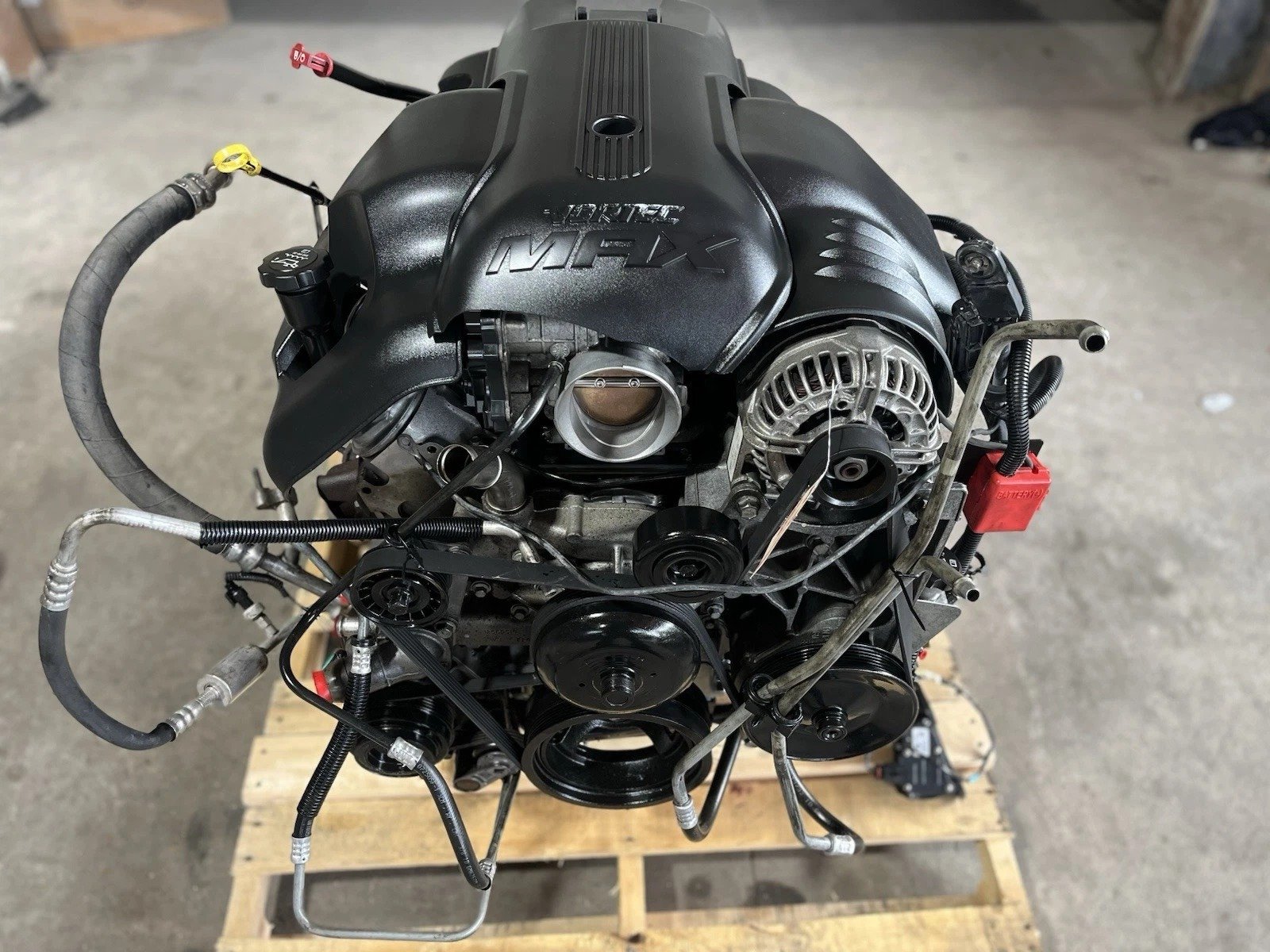

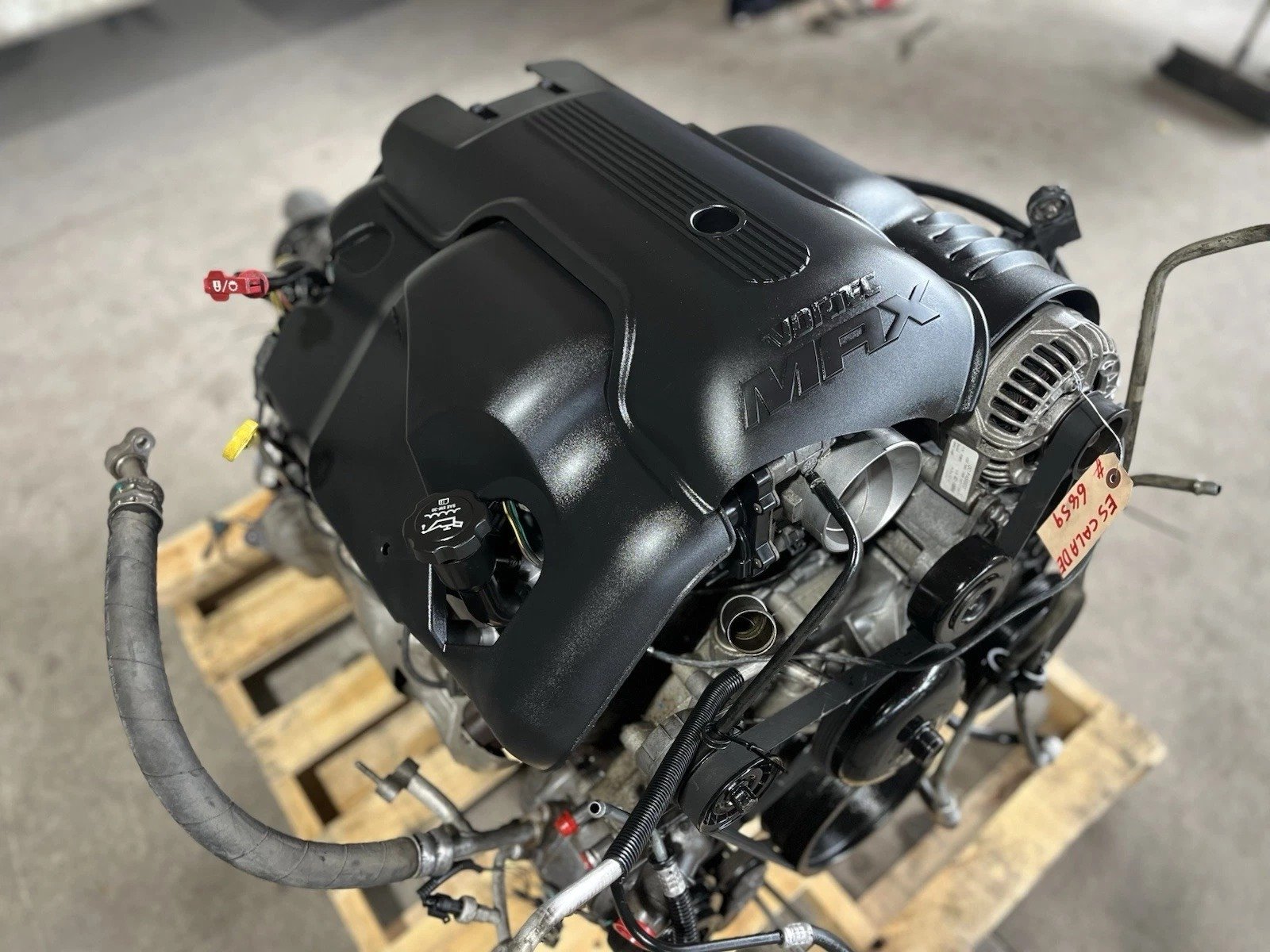

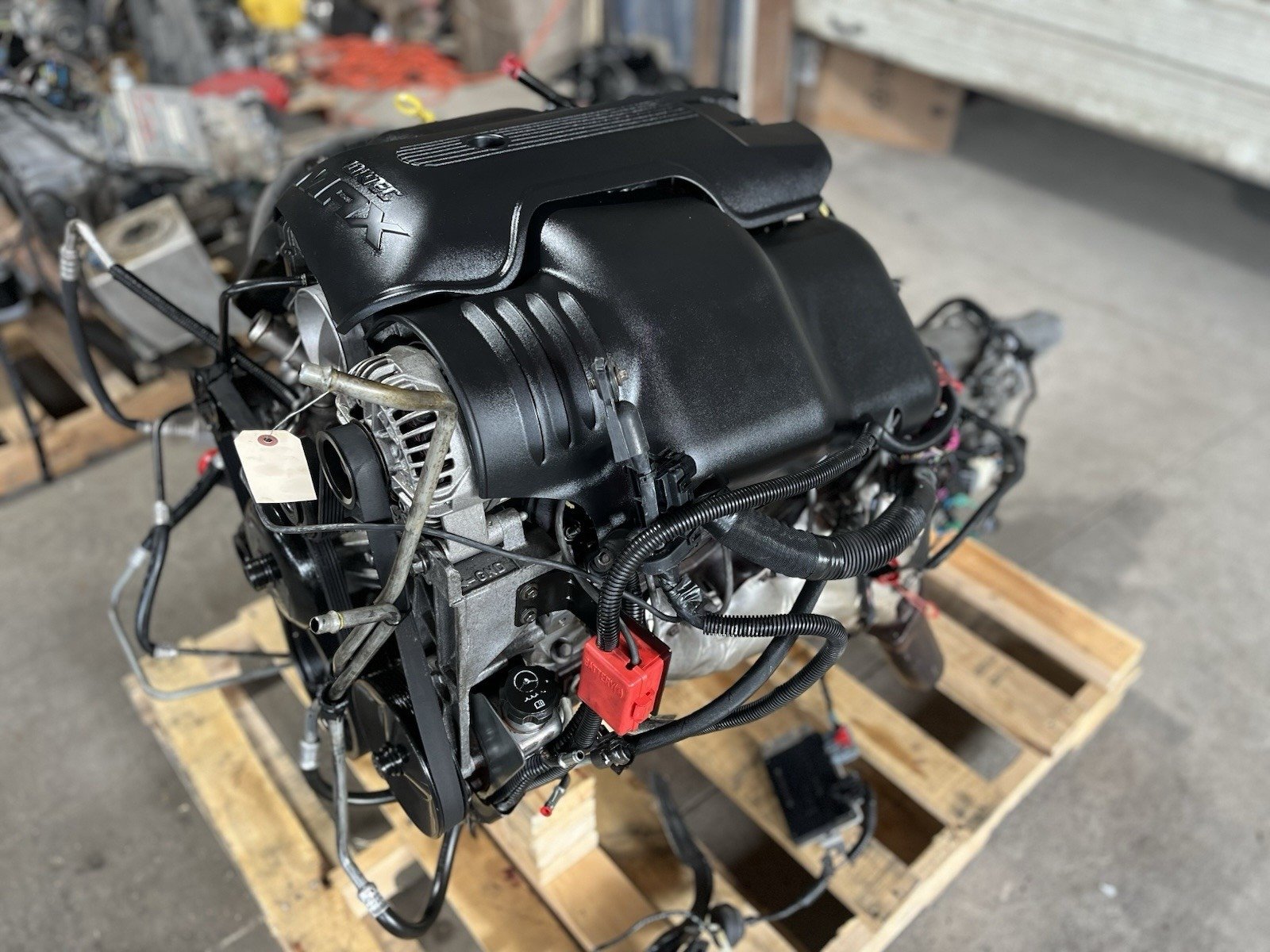

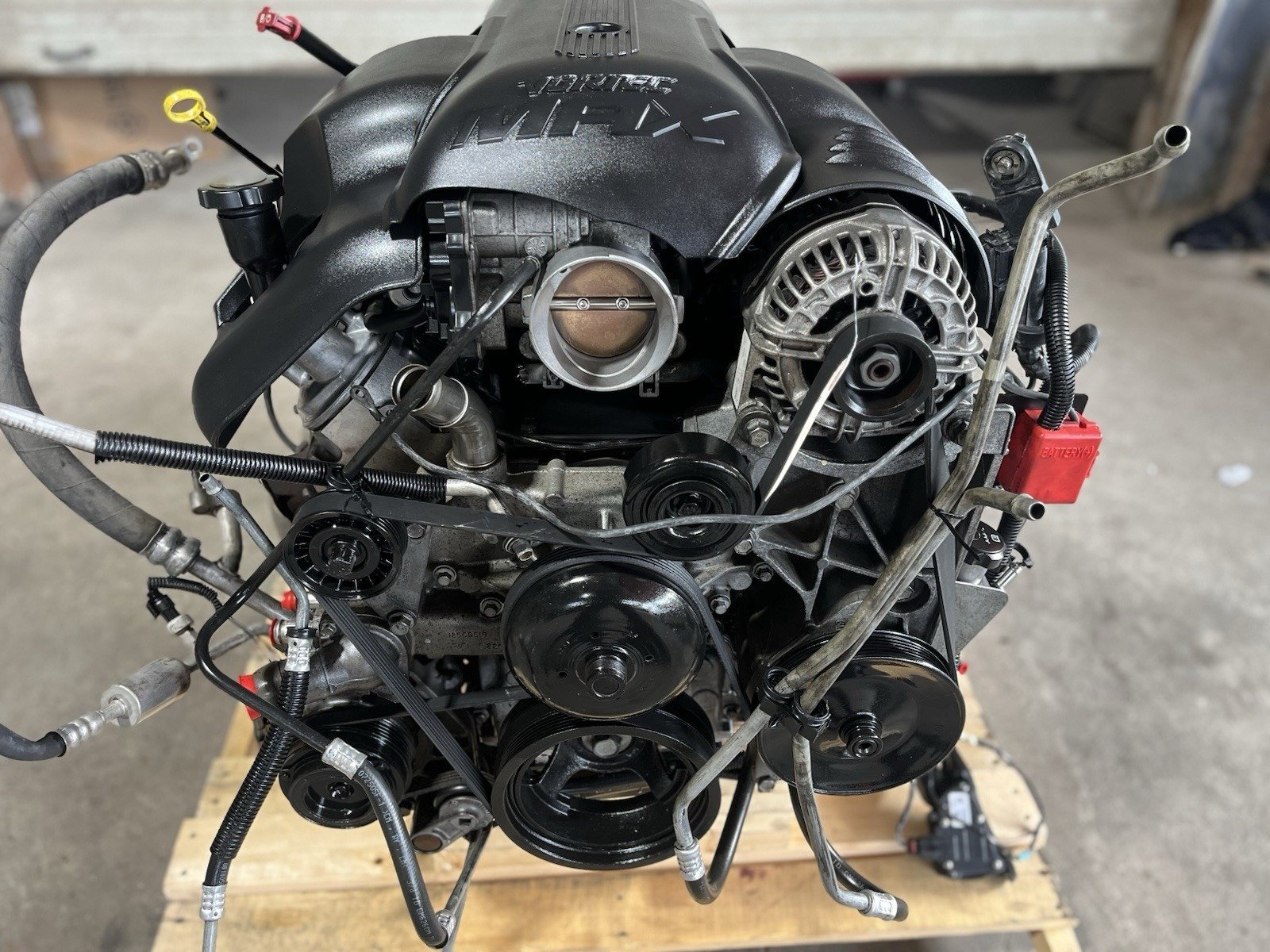

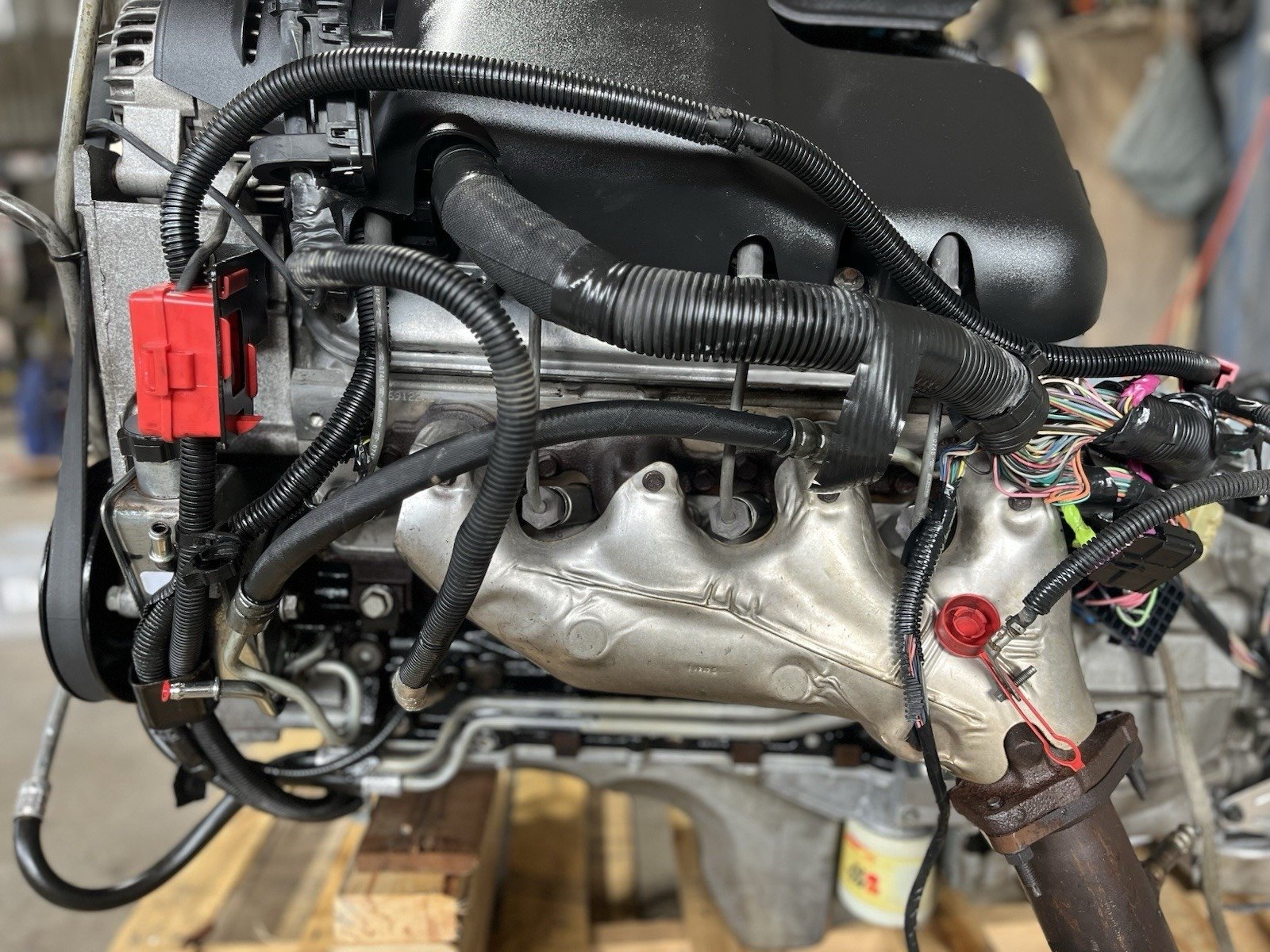

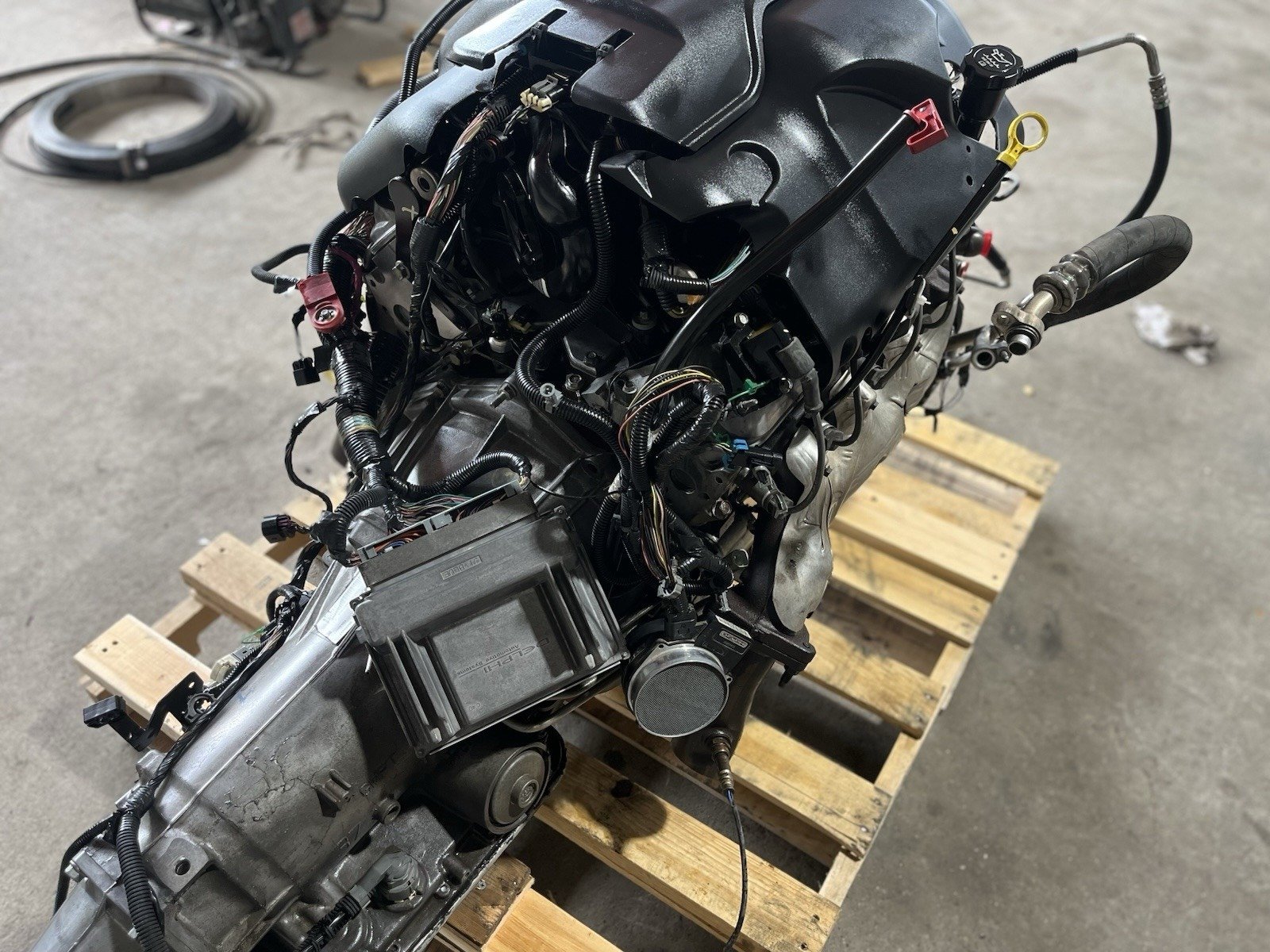

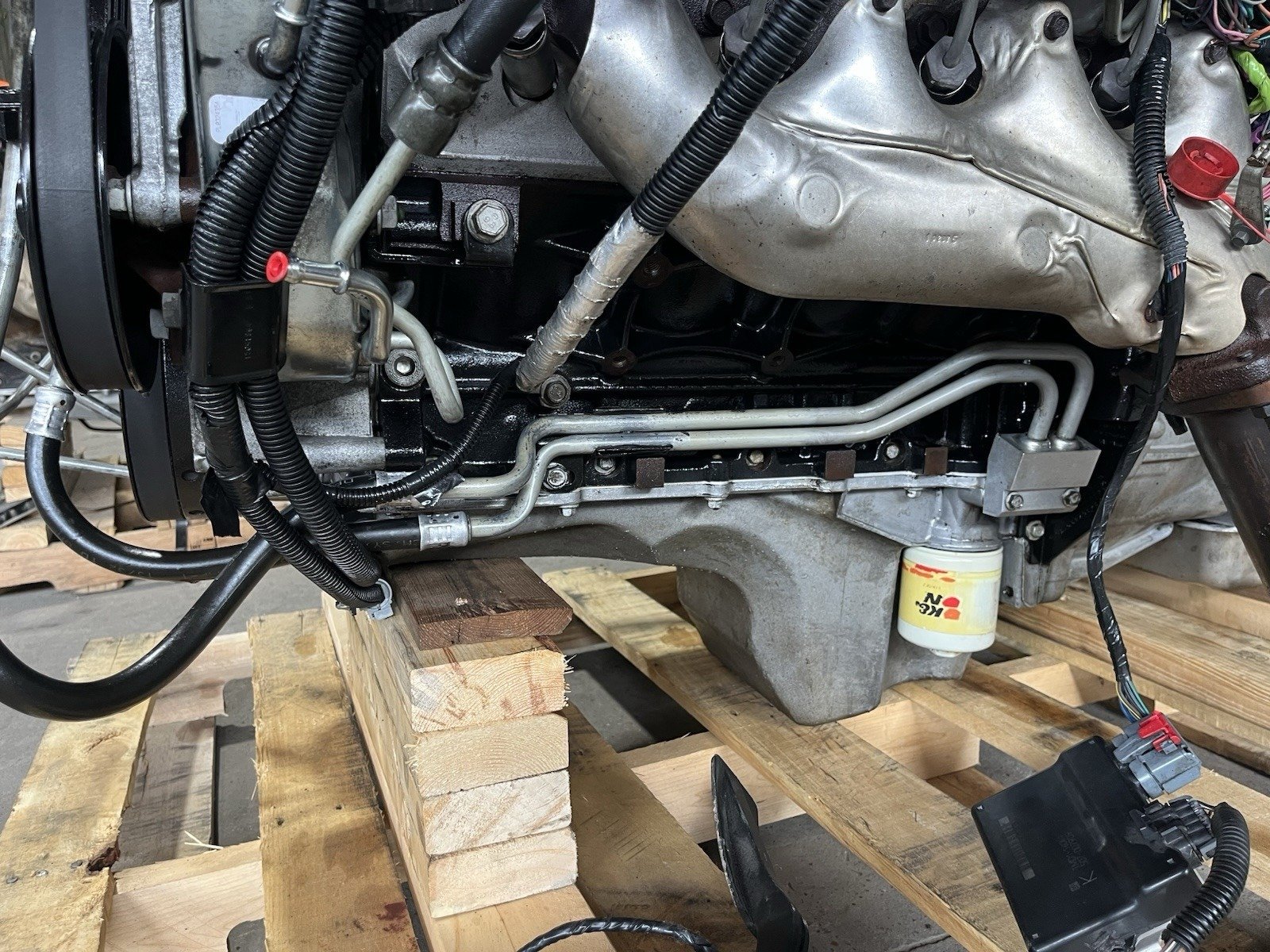

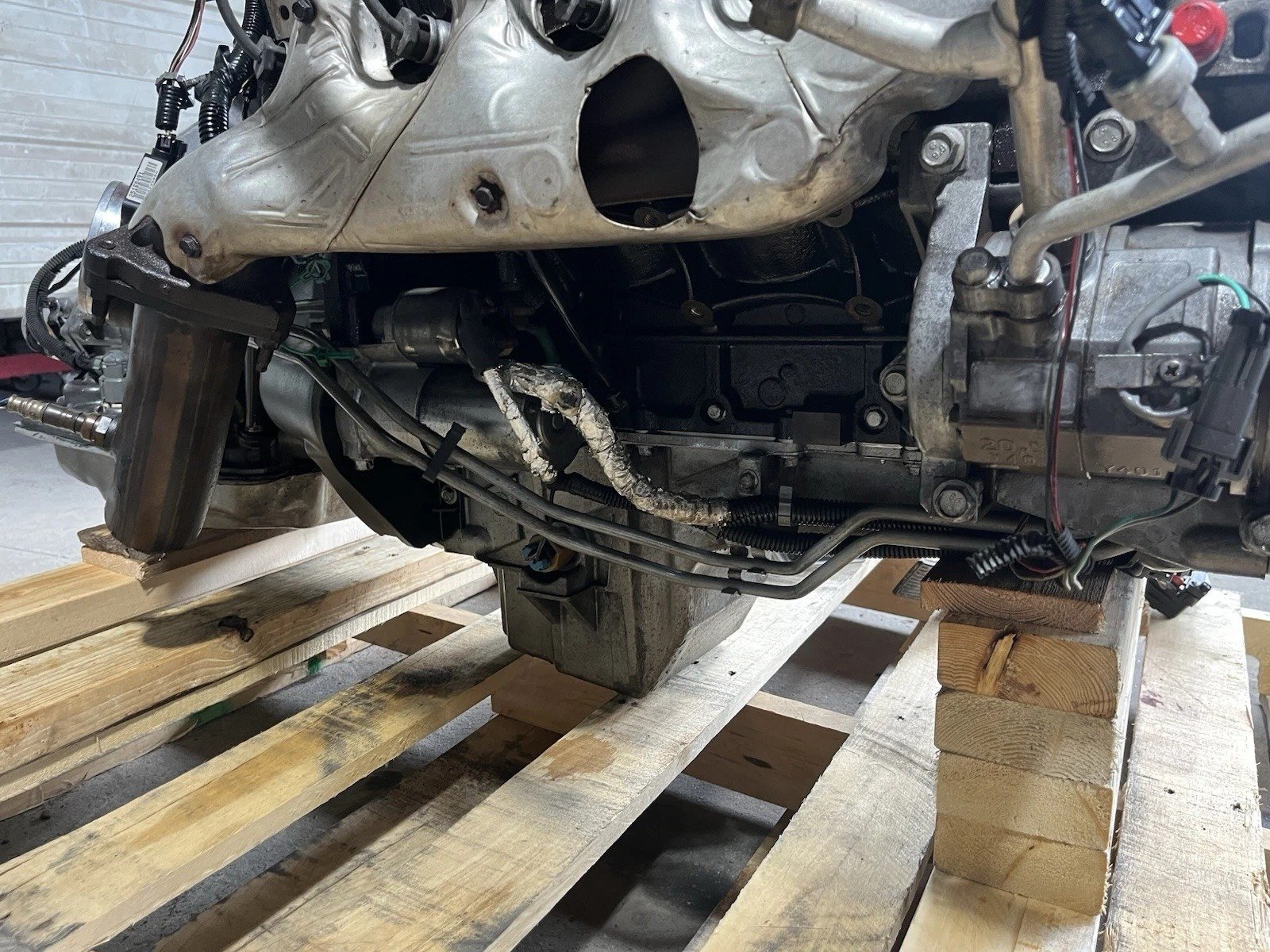

Pulled from a 2006 Cadillac Escalade with 128,762 exact miles, this complete 6.0L LQ9 engine and 4L65 2WD automatic transmission is a reliable, ready-to-install drivetrain. Ideal for LS swaps, custom builds, or OEM replacements, this package includes all necessary components for a smooth installation.
Engine Pullout Includes:
-
Complete 6.0L Iron Block LQ9
-
4L65 2WD Automatic Transmission
-
All Belt-Driven Accessories (Alternator, A/C Compressor, Power Steering Pump)
-
Engine Wiring Harness
-
Computer / ECU
-
Tach Module
-
Gas Pedal
This LQ9 engine and 4L65 transmission package is perfect for anyone looking for a high-performance GM V8 drivetrain pulled from a running, low-mileage vehicle.
Technical Specifications of the High-Output LQ9 Vortec Power Plant
When planning an upgrade centered around a 2006 Cadillac Escalade 6.0L LQ9 engine for a classic truck retrofit or an OEM vehicle replacement, tracking precise mechanical factory specifications is critical for managing fuel delivery lines and physical firewall clearances.
-
Engine Core Construction: Rugged cast-iron cylinder block equipped with high-flowing aluminum cylinder heads (Gen III LS architecture)
-
Internal Piston Configuration: Factory flat-top pistons yielding a high 10.1:1 compression ratio (compared to 9.4:1 on the standard LQ4 block)
-
Transmission Integration: 4L65 heavy-duty 4-speed electronic automatic transmission configured for two-wheel-drive output
-
Throttle Control Layout: Drive-by-Wire (DBW) electronic multi-pin throttle body assembly
-
Factory Performance Ratings: 345 Horsepower and 380 lb-ft of Torque
To cross-reference specific block casting marks, internal cylinder configurations, or wiring schematics for high-output General Motors Gen III truck engine architectures, you can check out the comprehensive public databases on LSX Magazine and Tech Reference Indexes.
What is Included in This Complete Drivetrain Turn-Key Package?
This 2006 Cadillac Escalade 6.0L LQ9 engine pullout assembly is delivered as an ultra-complete mechanical package, preserving the critical factory electronics and belt-driven components that typical salvage yards slice through or break apart.
Electronics, Loom, & Control Architecture
-
Uncut factory engine wiring harness with all primary injector, coil pack, and sensor clips intact.
-
Original matching Engine Control Unit (ECU/PCM) calibrated for high-output Escalade fuel parameters.
-
Electronic gas pedal assembly alongside its corresponding TAC (Throttle Actuator Control) module link.
Mechanical Core Components & Support Assemblies
-
Complete factory composite intake manifold assembly, fuel rails, and electronic throttle body.
-
Heavy-duty 2WD 4L65 automatic transmission unit featuring upgraded factory internal planetary gears.
-
All front belt-driven accessories: high-output alternator, power steering pump, water pump, and air conditioning compressor.
-
Full internal assembly from the top plenum down to the factory stamped-steel truck oil pan.
Why the Escalade LQ9 Platform is the Ultimate Foundation for Boosted Swaps
Classic truck builders and pro-touring hot-rod shops actively prioritize finding a genuine 2006 Cadillac Escalade 6.0L LQ9 engine over standard 4.8L or 5.3L variants because of its massive displacement advantage and legendary structural integrity. Unlike aluminum blocks, the heavy-duty cast-iron cylinder block of the LQ9 handles extreme cylinder pressures with remarkable ease.
Because the 2006 Cadillac Escalade 6.0L LQ9 engine utilizes standard high-flow aluminum cylinder heads and factory flat-top pistons, the engine responds beautifully to aftermarket performance modifications. For builders looking to build a high-horsepower street machine, adding a mild performance camshaft upgrade or bolt-on turbocharger allows this 6.0L engine to easily cross the 500-to-600 horsepower mark without requiring expensive internal rotating assembly overhauls.
Freight Shipping Logistics and Universal Drivetrain Compatibility
This universal 2006 Cadillac Escalade 6.0L LQ9 engine drivetrain package serves as a direct factory replacement for 2002–2006 Cadillac Escalade models, and stands as an exceptional custom engine swap foundation for vintage C10 pickups, squarebody truck transformations, or classic muscle car retrofits.
We anchor this entire heavy-duty V8 package onto an industrial wooden shipping pallet, wrapping the iron block, intake assembly, and automatic transmission in protective industrial shrink-wrap to isolate components from road vibrations during freight transit. All motor oils, transmission fluids, and cooling system residues are completely extracted prior to shipment to fully comply with nationwide highway freight transport protocols. To explore complementary conversion gear or matching hardware, make sure to browse our General LS Engine Swaps Inventory or check out our catalog of Tested Automatic Transmissions to match this setup to alternative gear layouts.
Frequently Asked Questions (FAQs)
-
Can I use standard 87 pump gas with this high-compression engine? While the integrated PCM logic can adjust timing parameters to prevent engine knock, using premium 91+ octane fuel is highly recommended to extract the full factory 345 horsepower rating due to the 10.1:1 compression ratio.
-
What is required to make this setup standalone for a classic car swap? For vintage vehicle integration, you will need a standalone wiring harness adapter and a professional software reflash to disable the factory VATS (Vehicle Anti-Theft System) security protocol inside the ECU.
-
Was the 4L65 transmission fully tested for slippage? Absolutely. This heavy-duty 4-speed automatic unit underwent complete functional load checkouts, confirming smooth internal clutch engagement, immediate gear changes, and crisp reverse engagement prior to vehicle dismantling.
-
Where can I buy a reliable 2006 Cadillac Escalade 6.0L LQ9 engine package online? Our fully certified, compression-tested engine pullouts provide professional car builders with an honest, completely documented, and dependable performance foundation.
Disclaimer: This pre-owned automotive powertrain package is sold intended for professional vehicle restoration, OEM replacement, or private custom engine swap applications. Professional installation, fresh fluid lines, and complete electronic calibrations are highly recommended to maximize field safety and component durability.
