2005 Cadillac Escalade 6.0L LQ9 Engine – Complete Iron-Block HO V8 & 4L65E 4WD Package
For custom car creators, classic truck restorers, and high-performance 4×4 builders, sourcing a complete 2005 Cadillac Escalade 6.0L LQ9 Engine drivetrain pullout offers the perfect combination of legendary iron-block reliability and factory high-compression power. Pulled directly from a running, well-maintained luxury SUV showing 203,022 exact miles, this complete Gen III small-block powertrain features the premium Vortec High Output (HO) architecture. Choosing a complete standalone 2005 Cadillac Escalade 6.0L LQ9 Engine turnaround bundle streamlines your custom fabrication project, delivering the entire mechanical block and matching electronics together to eliminate the immense hidden costs of sourcing compatible drive-by-wire components, computer modules, and front accessory brackets separately.https://perlicanparts.org/auto-parts-store-about/

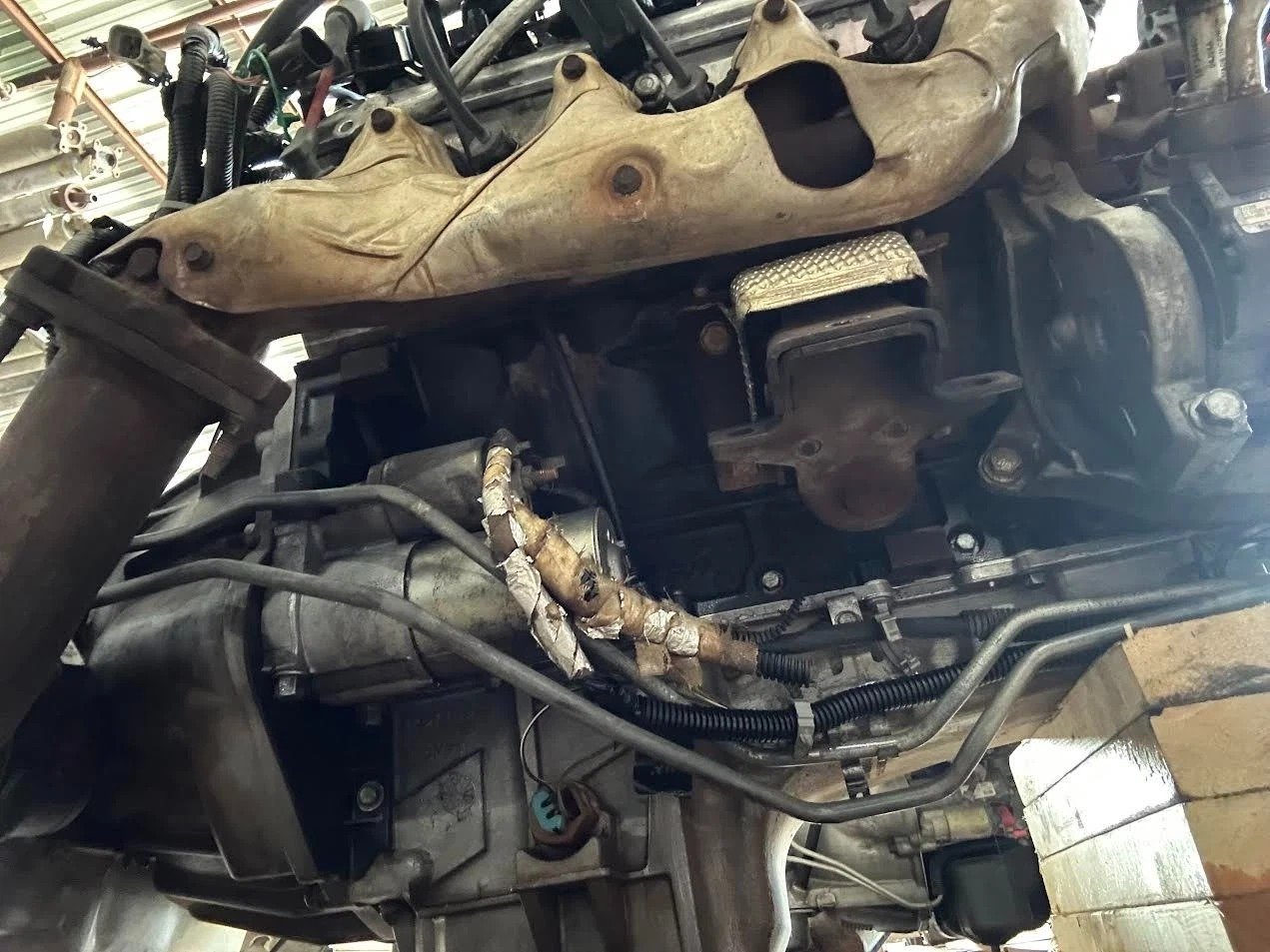

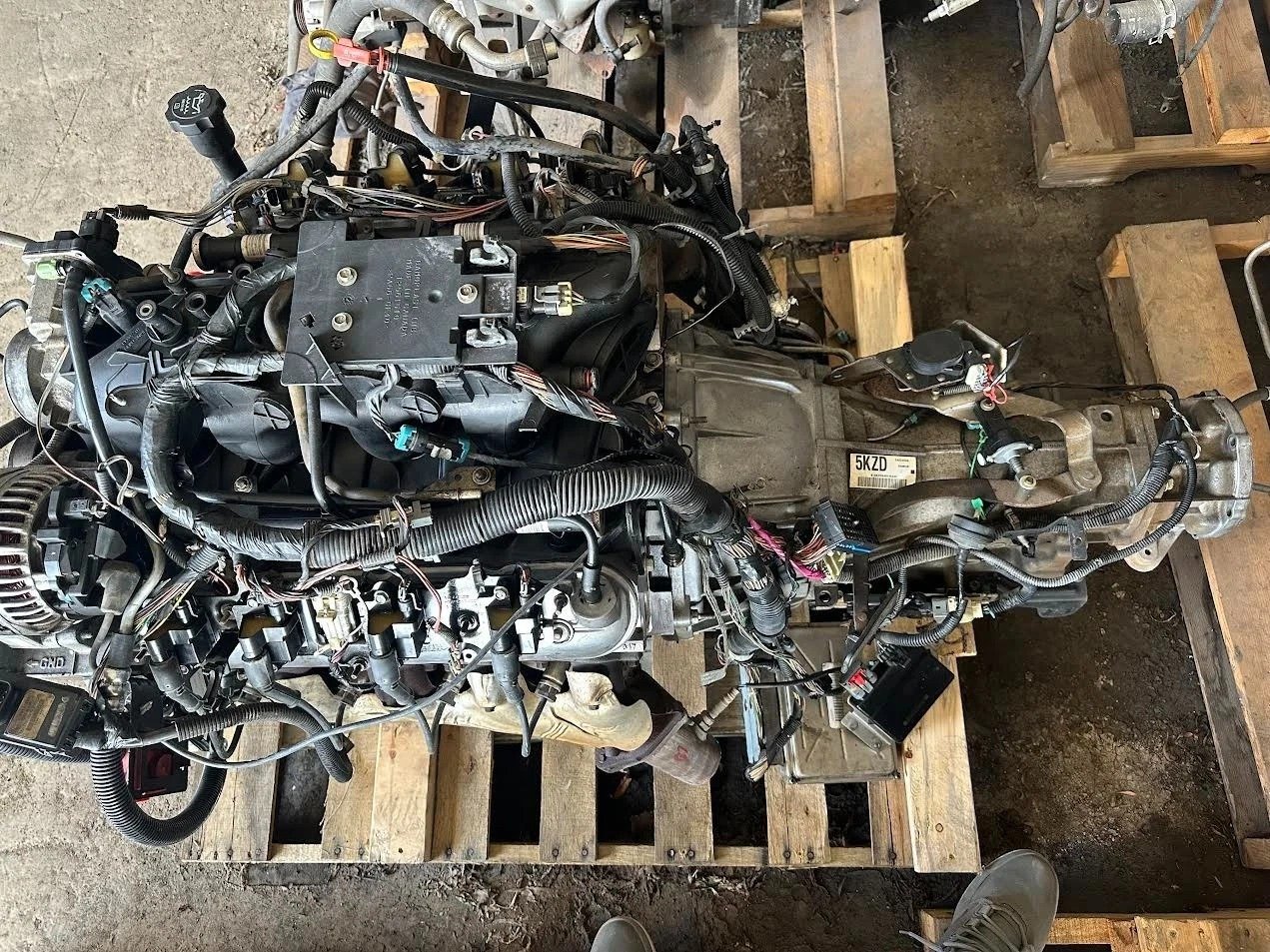

Pulled from a 2005 Cadillac Escalade with 203,022 exact miles, this complete 6.0L LQ9 engine and 4L65E 4WD automatic transmission is ready for installation. Perfect for LS swaps, custom builds, or OEM replacements, this package includes all essential components for a smooth and reliable setup.
Engine Pullout Includes:
-
Complete 6.0L Iron Block LQ9 Engine
-
4L65E 4WD Automatic Transmission
-
All Belt-Driven Accessories (Alternator, A/C Compressor, Power Steering Pump)
-
Engine Wiring Harness
-
Computer / ECU
-
Tach Module
-
Gas Pedal
This LQ9 engine and 4L65E transmission combo provides a dependable GM V8 drivetrain, ideal for restoring your Escalade or completing a high-performance build.
Technical Specifications of the High-Output LQ9 Escalade Drivetrain
When planning a conversion setup or structural vehicle restoration centered around a 2005 Cadillac Escalade 6.0L LQ9 Engine for a vintage truck retrofit or an OEM vehicle replacement, tracking precise mechanical factory specifications is critical for managing fuel delivery line pressures and physical engine bay clearances.
-
Engine Block Construction: High-strength cast-iron cylinder block equipped with high-flowing aluminum cylinder heads (Gen III LS architecture)
-
Internal Compression Configuration: Factory flat-top pistons yielding a higher 10.1:1 compression ratio over standard truck blocks
-

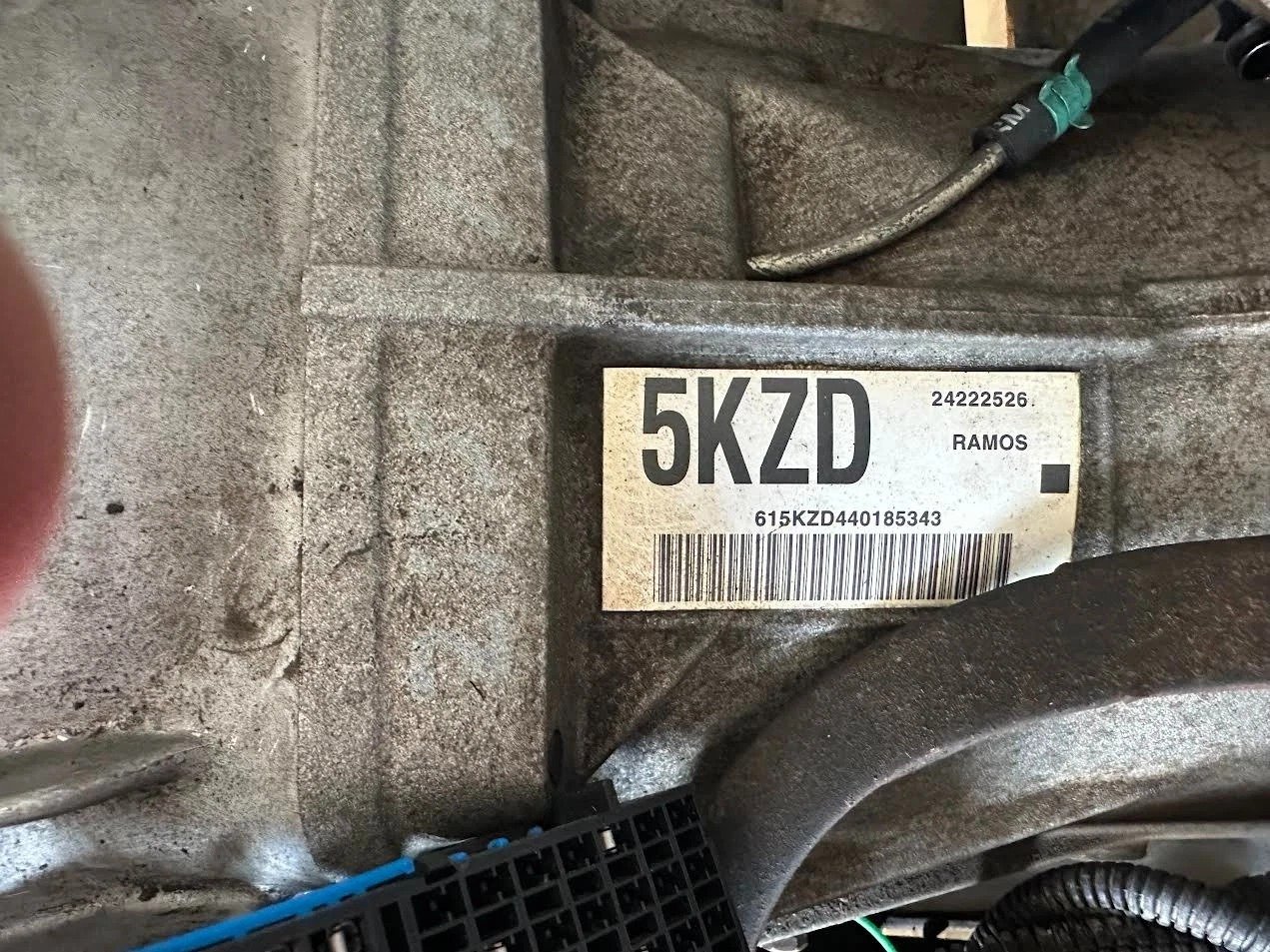

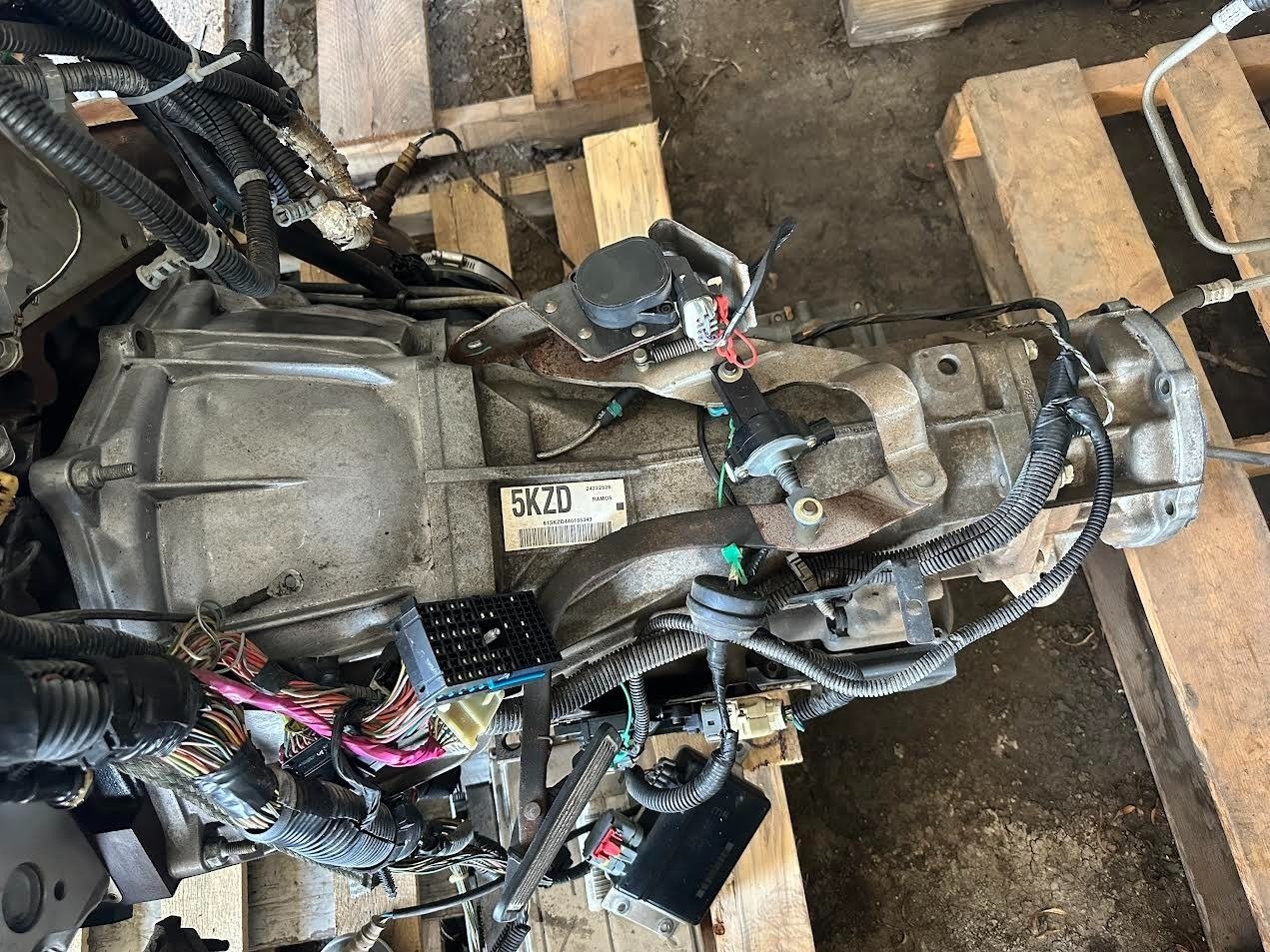

Transmission Integration: Heavy-duty 4L65E electronic 4-speed automatic transmission configured for four-wheel-drive configurations
-
Throttle Control Layout: Precise electronic Drive-by-Wire (DBW) throttle body system
-
Factory Performance Ratings: 345 Horsepower and 380 lb-ft of Torque
To cross-reference specific block casting marks, internal oiling routing schematics, or cylinder head airflow charts for high-performance General Motors Gen III truck engine architectures, you can check out the comprehensive public databases on LSX Magazine and Tech Reference Indexes.
What is Included in This Complete 4WD Turn-Key Bundle?
This 2005 Cadillac Escalade 6.0L LQ9 Engine pullout assembly is delivered as an ultra-complete mechanical package, preserving the critical factory electronics and belt-driven components that typical salvage yards slice through or damage during hasty extraction.
Electronics, Loom, & Control Architecture
-
Full factory engine wiring harness with all primary injector, coil pack, and sensor clips intact.
-
Original matching Engine Control Unit (ECU/PCM) pre-loaded with factory 2005 high-output fuel mapping.
-
Complete interior integration hardware, featuring the matching electronic gas pedal and its dedicated TAC module link.
Mechanical Core Components & Belt Drive Line
-
Complete factory composite truck intake manifold assembly, fuel rails, fuel injectors, and electronic throttle body.
-
Aluminum cylinder heads with complete internal overhead valvetrain, factory camshaft, heavy-duty timing chain, and rugged timing cover.
-
Dual individual coil pack sub-assemblies mounted to the original perimeter-bolt valve covers.
-

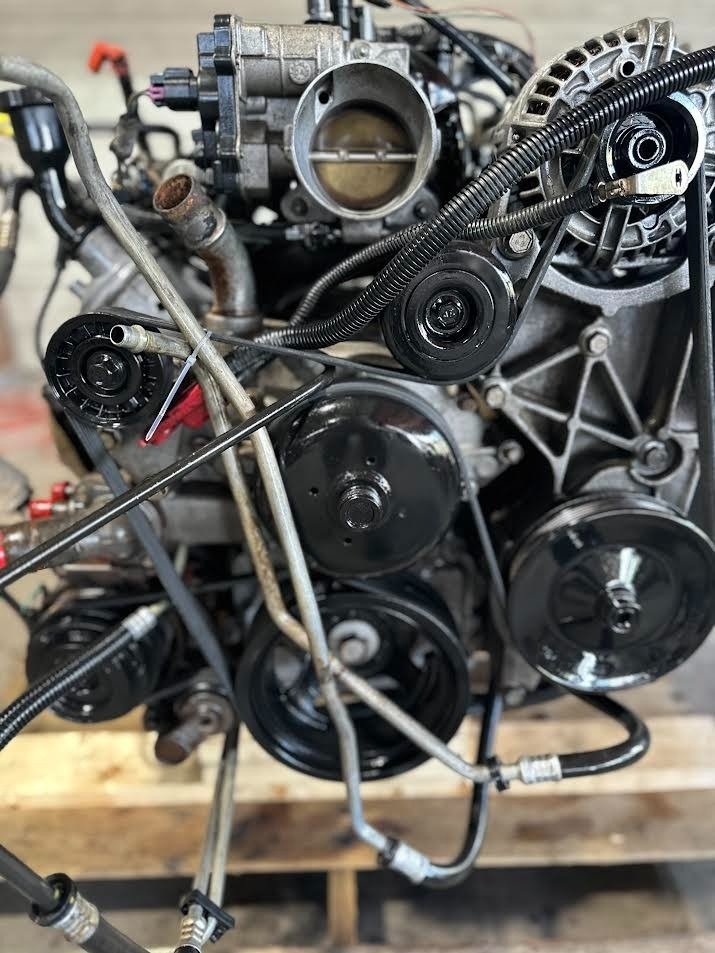

All front belt-driven accessories: high-output alternator, power steering pump, water pump, air conditioning compressor, and starter motor.
-

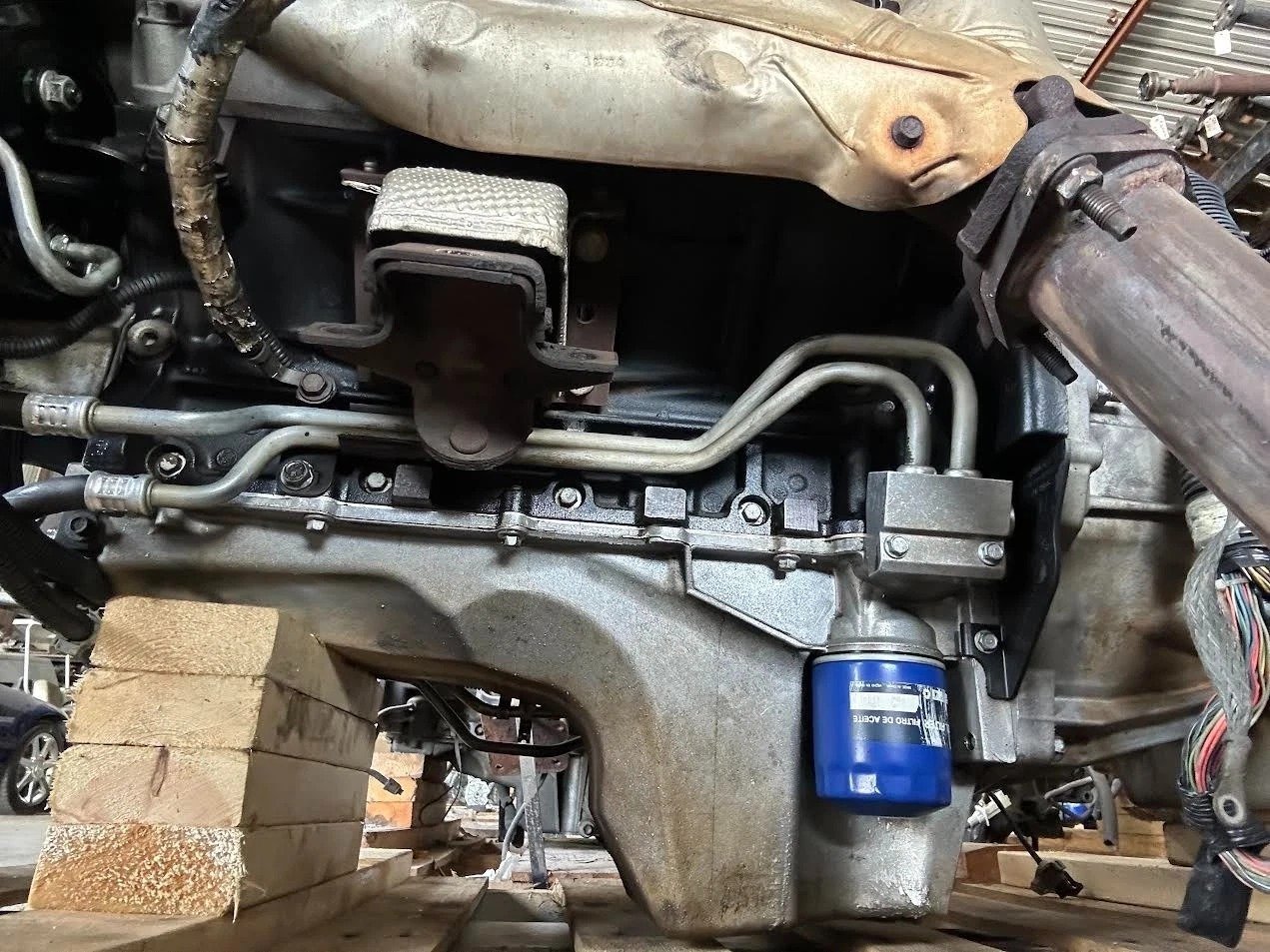

Full internal assembly from the top plenum down to the factory deep-sump steel structural oil pan.
Why the Escalade LQ9 Platform is Highly Favored Over the Standard LQ4
Engine swap enthusiasts and pro-touring hot-rod shops actively prioritize finding a genuine 2005 Cadillac Escalade 6.0L LQ9 Engine over the more common LQ4 variant because of its superior internal layout and performance ceiling. While both sharing a highly durable 6.0-liter cast-iron foundation, the LQ9 utilizes premium flat-top pistons instead of dished pistons, bumping up the compression to unlock sharper throttle response and immediate torque production across the RPM power band.
Because the 2005 Cadillac Escalade 6.0L LQ9 Engine features an iron block that resists extreme cylinder pressures, it stands as an exceptional foundation for forced induction or aggressive valvetrain modifications. For builders looking to construct a high-horsepower street truck or a rugged trail machine, installing a mild performance camshaft upgrade or bolt-on supercharger allows this 6.0L V8 to comfortably exceed 500 horsepower without needing a costly internal rotating assembly rebuild.
Freight Shipping Logistics and Universal Drivetrain Compatibility
This universal 2005 Cadillac Escalade 6.0L LQ9 Engine drivetrain package serves as a direct factory replacement for 2002–2006 Cadillac Escalade and Hummer H2 models, and stands as an exceptional premium engine swap foundation for vintage C10 pickups, squarebody truck transformations, or classic muscle car retrofits.
We anchor this entire heavy-duty V8 package onto an industrial wooden shipping pallet, wrapping the iron block, intake assembly, and automatic transmission in protective industrial shrink-wrap to isolate components from road vibrations during freight transit. All motor oils, transmission fluids, and cooling system residues are completely extracted prior to shipment to fully comply with nationwide highway freight transport protocols. To explore complementary conversion gear or alternative mounting setups, make sure to browse our General LS Engine Swaps Inventory or check out our catalog of Tested Automatic Transmissions to match this setup to alternative four-wheel-drive gear setups.
Frequently Asked Questions (FAQs)
-
Can I run standard 87 octane pump gas with this engine? Due to the high-compression 10.1:1 flat-top pistons found in this high-output model, using premium 91+ octane fuel is highly recommended to prevent spark knock and maintain optimal factory timing.
-
What is required to make this setup standalone for a classic truck swap? For vintage vehicle integration, you will need a standalone wiring harness adapter and a professional software reflash to disable the factory VATS (Vehicle Anti-Theft System) security protocol inside the ECU.
-
Was the 4L65E 4WD automatic transmission fully inspected? Absolutely. This upgraded electronic transmission underwent complete mechanical rotation and visual internal inspection, confirming tight planetary gear tolerances, clean valve fluid paths, and solid gear engagement prior to extraction.
-
Where can I buy a reliable 2005 Cadillac Escalade 6.0L LQ9 Engine package online? Our fully certified, compression-tested engine pullouts provide professional car and truck builders with an honest, completely documented, and dependable performance foundation.
Disclaimer: This pre-owned automotive powertrain package is sold intended for professional vehicle restoration, OEM replacement, or private custom engine swap applications. Professional installation, fresh fluid lines, and complete electronic calibrations are highly recommended to maximize field safety and component durability.
