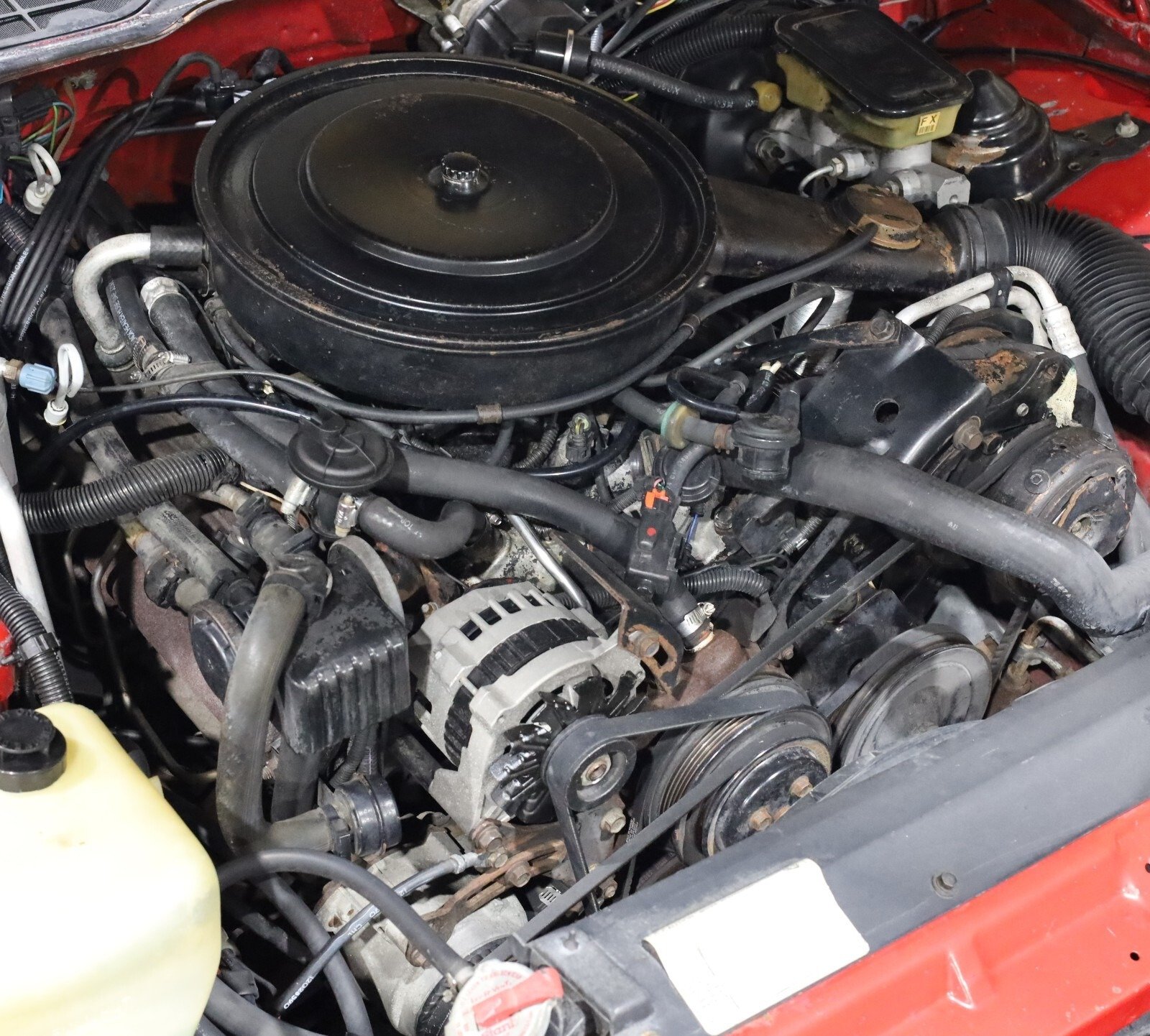

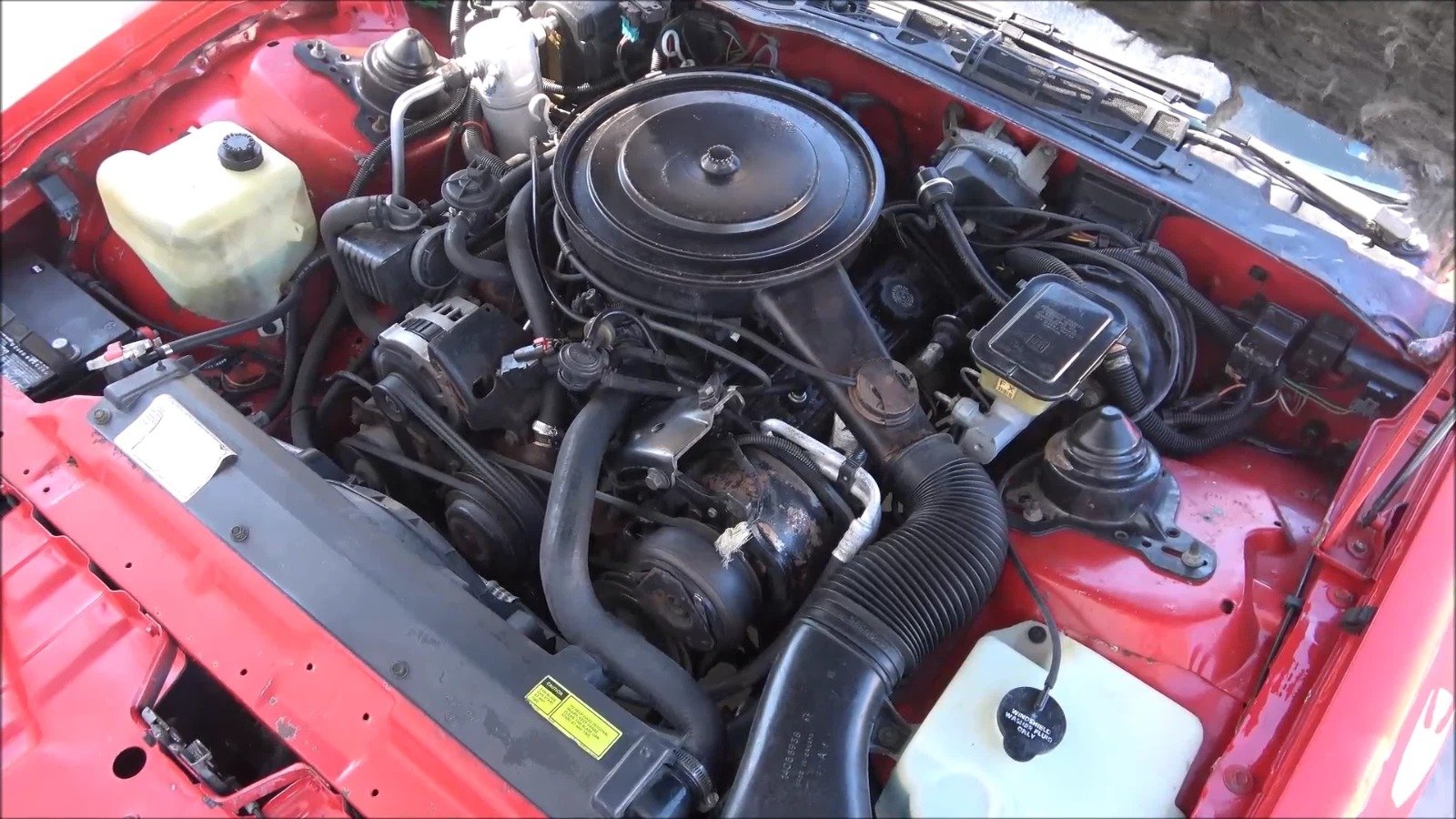

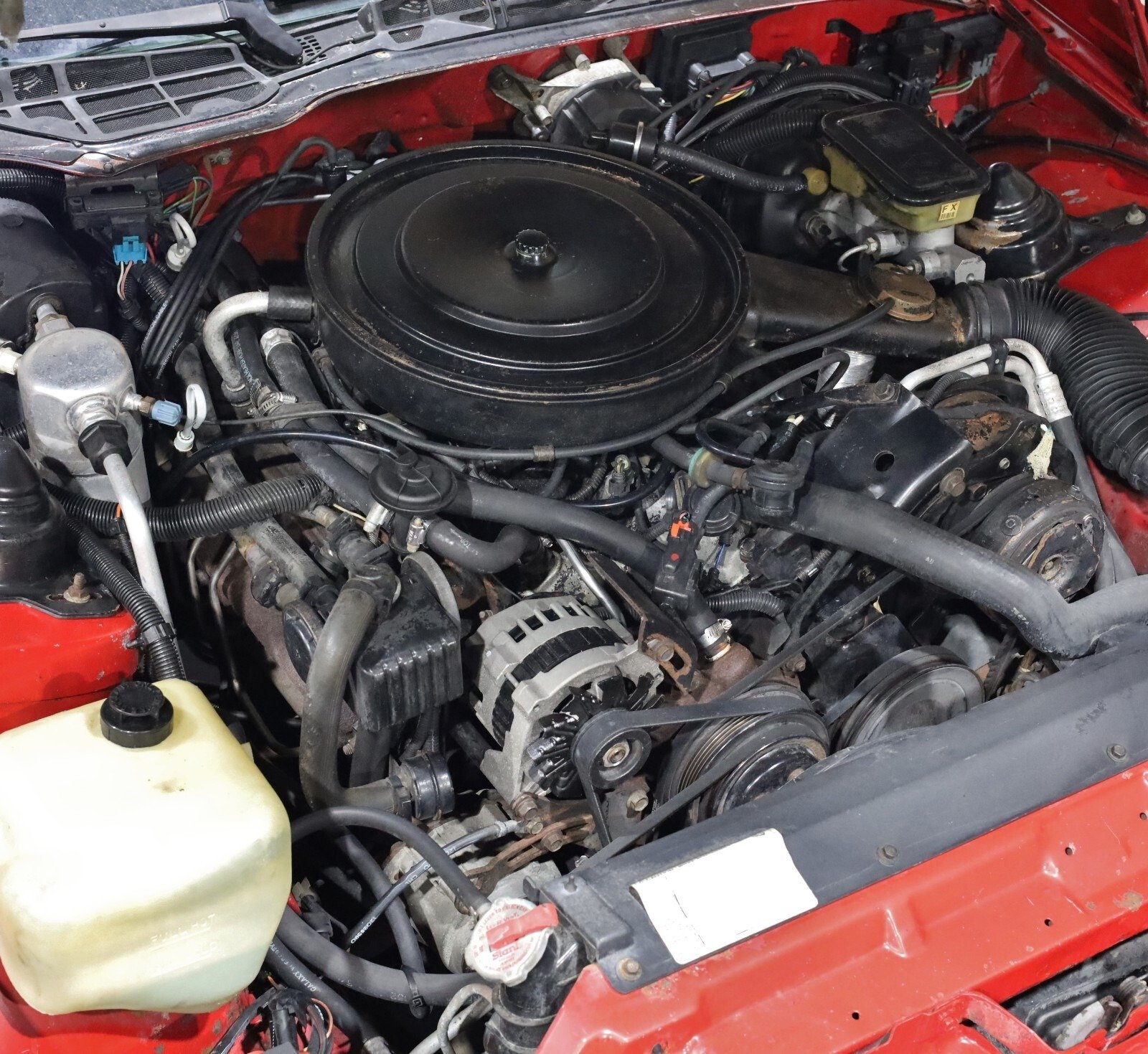

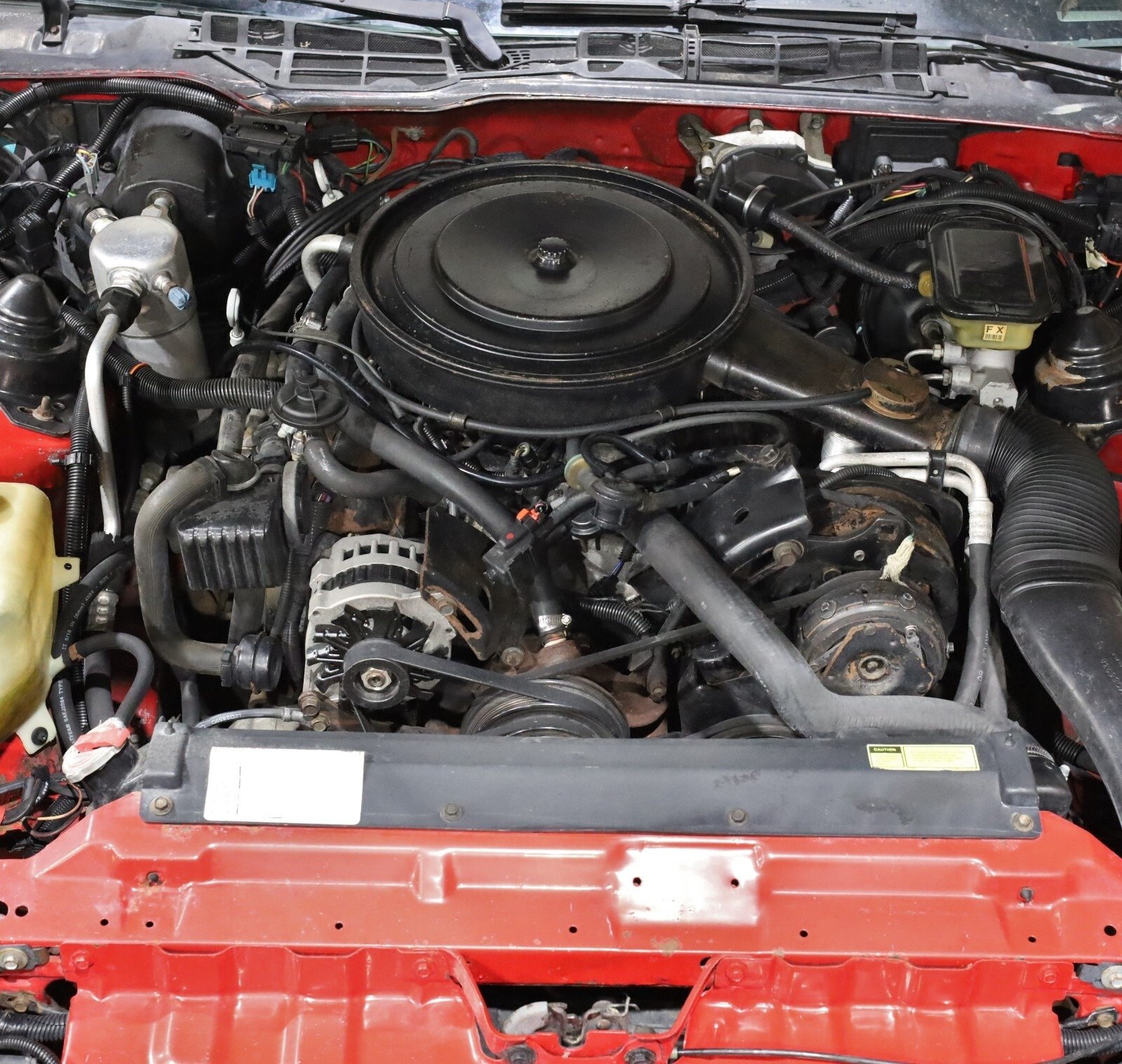

1987 Pontiac Firebird Trans Am – 5.0L 305 Carb SBC Engine & 700R4 4-Speed Automatic Transmission Pullout

Technical Specifications of the Third-Gen 1987 Trans Am 5.0L Carb Engine

When planning an upgrade, custom street-rod swap, or structural vehicle restoration centered around a 1987 Trans Am 5.0L Carb Engine for a classic car retrofit or an OEM vehicle replacement, tracking precise mechanical factory specifications is critical for managing fuel delivery lines and physical engine bay clearances.

• Engine Core Construction: High-strength cast-iron cylinder block equipped with durable cast-iron cylinder heads (Traditional GM small-block architecture)

• Fuel Induction Layout: Factory-calibrated 4-barrel carburetor mounted to a cast iron intake manifold configuration for traditional mechanical operation

• Transmission Integration: 700R4 heavy-duty 4-speed automatic transmission featuring a robust mechanical throttle valve (TV) cable setup and 30% highway overdrive

• Ignition Control Layout: Distributor-based HEI (High Energy Ignition) system managed directly by the classic electronic control architecture

• Factory Performance Ratings: Built for smooth torque delivery and classic American V8 rumble

To cross-reference specific block casting marks, internal oiling routing schematics, or cylinder head airflow charts for high-performance General Motors small-block engine architectures, you can check out the comprehensive public databases on LSX Magazine and Tech Reference Indexes.

What is Included in This Complete Drivetrain Turn-Key Package?

This 1987 Trans Am 5.0L Carb Engine pullout assembly is delivered as an ultra-complete mechanical package, preserving the critical factory electronics, automatic shifting hardware, and belt-driven components that typical salvage yards slice through or damage during hasty extraction.

Electronics, Loom, & Control Architecture

• Complete factory engine wiring harness with all primary ignition coil, distributor, and sensor clips intact.

• Original matching Engine Control Module (ECM) computer pre-loaded with factory 1987 F-body carburetor management parameters.

• Full set of all vital engine sensors pre-installed (including coolant temperature, oil pressure, and mechanical engine feedback sensors).

Mechanical Core Components & Automatic Transmission Line

• Complete factory 4-barrel carburetor assembly, linkages, mechanical throttle brackets, and intake manifold.

• Cast iron cylinder heads with complete internal overhead valvetrain, factory camshaft, timing assembly, and rugged front timing cover.

• Authentic 700R4 4-speed automatic transmission complete with its original torque converter, shift linkages, and structural flexplate setup.

• Full front accessory drive array complete with all factory structural brackets, hardware bolts, alternator, power steering pump, and water pump.

• High-torque starter motor, original factory cast iron exhaust manifolds, and factory low-profile structural oil pan.

Why the 1987 Trans Am 5.0L Carb Engine Setup is a Great Project Choice

Performance enthusiasts and vintage hot-rod shops actively prioritize finding a genuine 1987 Trans Am 5.0L Carb Engine package over standard truck variants because it represents a highly accessible baseline for traditional muscle car builds. Because this is an authentic F-body passenger car layout, it features a low-profile configuration that slips cleanly into classic car frames and tight engine bays without requiring custom hood scoops or deep firewall modifications.

Additionally, because the 1987 Trans Am 5.0L Carb Engine in this package includes a factory-mated 700R4 electronic-free automatic transmission, it offers an incredibly straightforward installation experience. The 700R4 features a purely mechanical shift execution that does not rely on a standalone transmission control unit, making it an excellent choice for custom hot rods, vintage cruisers, or classic truck retrofits. Built on the legendary small block platform with immense aftermarket support, this package serves as an exceptional baseline for performance upgrades, intake swaps, or a complete period-correct restoration.

Freight Shipping Logistics and Universal Drivetrain Compatibility

This universal 1987 Trans Am 5.0L Carb Engine drivetrain package serves as a direct factory replacement for 1982–1987 Pontiac Firebird Trans Am/Formula and Chevrolet Camaro Z28 models, and stands as an exceptional premium engine swap foundation for vintage muscle cars, custom trucks, or custom street rods.

We anchor this entire heavy-duty V8 package onto an industrial wooden shipping pallet, wrapping the iron block, carburetor intake setup, and automatic transmission in protective industrial shrink-wrap to isolate components from road vibrations during freight transit. All motor oils, transmission fluids, and cooling system residues are completely extracted prior to shipment to fully comply with nationwide highway freight transport protocols. To explore complementary conversion gear or alternative mounting setups, make sure to browse our General LS Engine Swaps Inventory or check out our catalog of Tested Automatic Transmissions to match this setup to alternative torque converters or gear layouts.

Frequently Asked Questions (FAQs)

• Does this transmission require a computer to control shifting parameters? No, the 700R4 transmission uses a purely mechanical Throttle Valve (TV) cable connected directly to the carburetor linkage to regulate shift timing and internal line pressure, avoiding any need for modern computers.

• Can I easily swap an aftermarket aluminum intake onto this engine block? Absolutely. The traditional small-block Chevy platform features interchangeable intake layout configurations, allowing you to easily upgrade to an aftermarket intake manifold or specialized performance carburetor later on.

• Where can I buy a reliable 1987 Trans Am 5.0L Carb Engine package online? Our fully certified, visually inspected engine pullouts provide professional car and truck builders with an honest, completely documented, and dependable performance foundation.

Disclaimer: This pre-owned automotive powertrain package is sold intended for professional vehicle restoration, OEM replacement, or private custom engine swap applications. Professional installation, fresh fluid lines, and complete electronic calibrations are highly recommended to maximize field safety and component durability.
